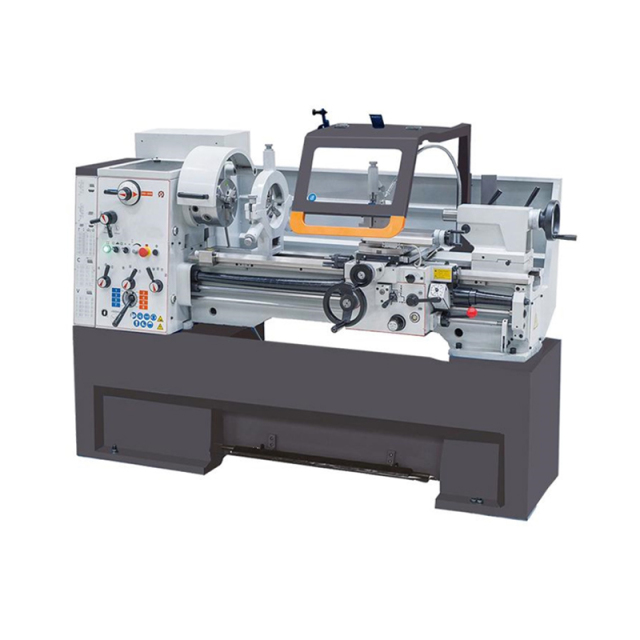

Precision ground and hardened bedways.Whole foot stand.Variable speed model for optional.
Specifications
CM6241
CM6241V
Swing over bed
410mm
Swing over cross slide
255mm
Swing in gap
580mm
Center height
205mm
Distance between centers
1000/1500mm
Width of bed
250mm
Spindle nose
D1-6
Spindle bore
52mm
Taper of spindle bore
MT6
Range of spindle speed
16 steps 45-1800r/min
30-550/550-3000r/min
Compound rest travel
140mm
Cross slide travel
210mm
Leadscrew pitch
4TPI
Max. section of tool
20x20mm
Longitudinal feeds range
0.05-1.7mm/rev (0.002"-0.067"/rev)
Cross feeds range
0.025-0.85mm (0.001"-0.0335"/rev)
Threads metric pitches
42 kinds 0.2-14mm
Threads imperial pitches
45 kinds 2-72TPI
Threads diametral pitches
21 kinds 8-44DP
Threads module pitches
18 kinds 0.3-3.5MP
Quill diameter
50mm
Quill travel
120mm
Quill taper
MT4
Main motor power
2.2/3.3kW (3/4.5HP) 3Ph
Power of coolant pump
90W (1/8HP) 3Ph
Packing size
2060/2560x900x1640mm
N.W./G.W.
1300/1500kg 1550/1750kg
Standard Accessories
Optional Accessories
3 Jaw chuck
Taper turning attachment
Change gears set
Live center
Chasing dial indicator
Working light
Reduction sleeve
Leadscrew guard
Dead center
Chuck guard
Full length splash guard
Quick change tool post
Coolant system
Drill chuck+drill arbor
Brake system
DRO
4 Jaw chuck
Face plate
Steady rest
Follow rest
Toolbox & tools
