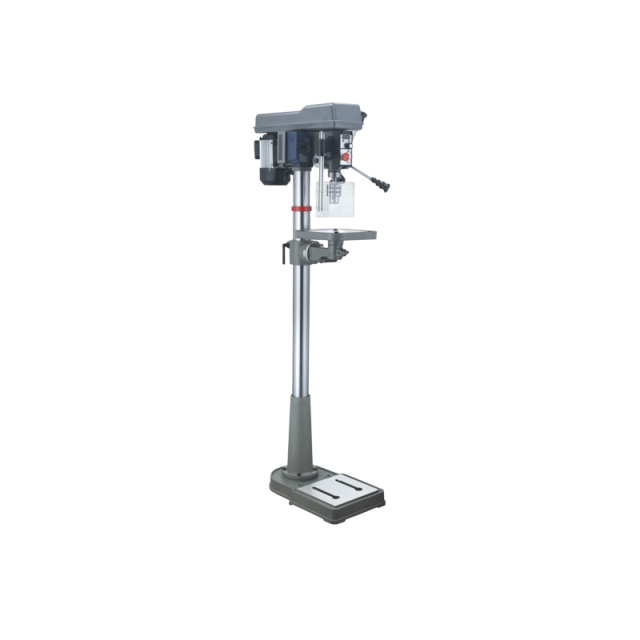

16mm (5/8'') max. chuck capacity.510mm swing.2 spindle speeds.Optional chuck guard and micro switch for CE requirement.
Model
DP51020F-VS
Drill capacity
32mm
Chuck capacity
16mm
Swing
510mm
Distance from spindle to column
255mm
Spindle taper
MT3
Speed (50Hz)
2 (0-700/0-3000rpm)
Spindle travel
120mm
Column diameter
92mm
Max. distance from spindle to table
680mm
Max. distance from spindle to base
1170mm
Base size
575x450mm
Table size
475x425mm
Table tilt
Yes -45/+45°
CE chuck guard
Yes
LED light
Laser light
Converter (vector control)
Motor (w)/S1
1500W
Height
1690mm
N.W./G.W.
122/127kg
Packing size
1450x655x390mm
Quantity for 20GP
72pcs
Standard Accessories
Optional Accessories
Drill chuck
Copper motor
Wrench set
Chuck guard
Aluminium motor
Emergency stop
Keyless drill chuck
Vice
