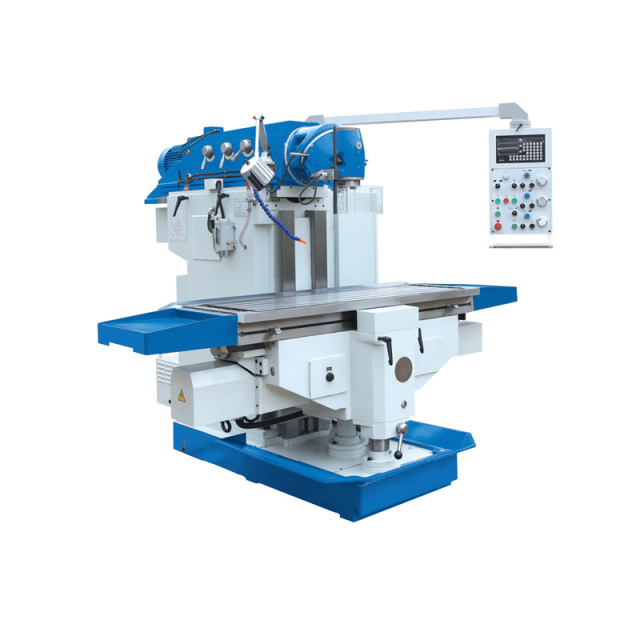

It can mill any angle surface through front half-sphere by swiveling milling head.
Central lubrication for X/Y/Z-axis.
CNC machine is optional.
|
Specifications |
X5750 |
X5750A |
|
Table size |
500x1600mm |
500x2000mm |
|
T-slot (No./width/pitch) |
5pcs/18/80mm |
|
|
Table travel (X/Y/Z-axis) |
1200/700/500mm |
1400/700/500mm |
|
Swivel angle of milling head |
360 |
|
|
Spindle taper |
ISO50 |
|
|
Spindle speed range |
27 steps 30-2050rpm |
|
|
Table feed (X/Y/Z-axis) |
10-1000/10-1000/5-500mm/min |
|
|
Table rapid speed |
2200/2200/1100mm/min |
|
|
Distance between spindle nose and table surface |
50-550mm |
|
|
Distance from spindle center line to column |
45-745mm |
|
|
Main motor power |
7.5kW |
|
|
Feed motor |
AC servo motor X/Y: 18N.m; Z: 27N.m |
|
|
Max. load |
1800kg |
|
|
Overall size |
2625x2460x2080mm |
2625x2860x2080mm |
|
Weight |
4200kg |
4500kg |
