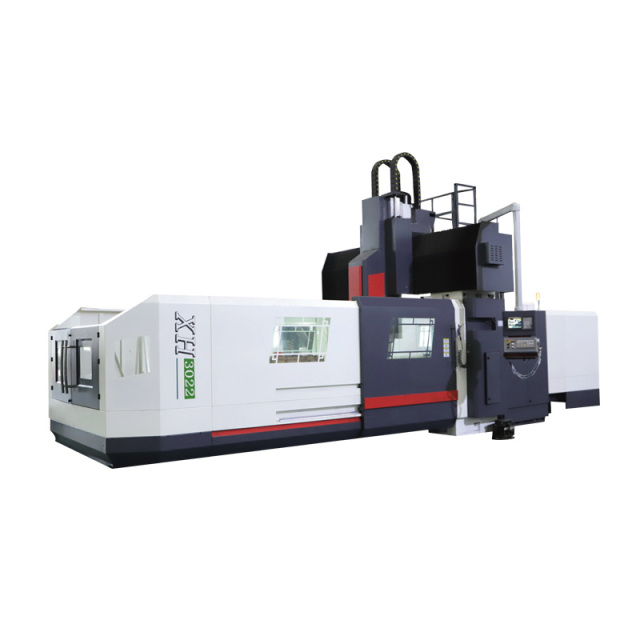

Specifications
XH8030
XH6030
XH4030
XH3030
Worktable
Table width
2200mm
Table length
8000mm
6000mm
4000mm
3000mm
Max. load of table
30000kg
22000kg
15000kg
10000kg
T-slot (No./width/pitch)
11pcs/28/200mm
Travel
X-axis travel
8200mm
6200mm
4200mm
3200mm
Y-axis travel
3150mm
Z-axis travel
1000mm
Distance from spindle nose to worktable
250-1250mm
Distance between two columns
Spindle
Spindle taper
BT50-190
Spindle motor
22/26kW
Spindle speed
6000rpm
Magazine capacity
24pcs
Feed speed (X/Y/Z-axis)
1-8000mm/min
Rapid feed speed (X/Y/Z-axis)
10/12/10m/min
Positioning accuracy (semi-closed loop)
Positioning accuracy (X-axis)
0.050mm
0.040mm
0.025mm
0.020mm
Positioning accuracy (Y-axis)
Repeatability positioning accuracy (semi-closed loop)
Repeatability positioning accuracy (X-axis)
0.035mm
0.016mm
0.013mm
Repeatability positioning accuracy (Y-axis)
0.014mm
Repeatability positioning accuracy (Z-axis)
Dimensions
19000x5800x5600mm
14500x5800x5600mm
10300x5800x5600mm
8300x5800x5600mm
Net weight
71000kg
57000kg
45000kg
38000kg
Z axis travel could be optional 1500mm while the table width is not less than 2500mm
Optional Accessories
Automatic rectangular milling head
Double-output right-angle milling head
Tool automatic setting
Square sliding ram
Vertical and horizontal tool magazine
CNC rotary table
Full closed loop grating scale
CTS (coolant through spindle)
