Specifications

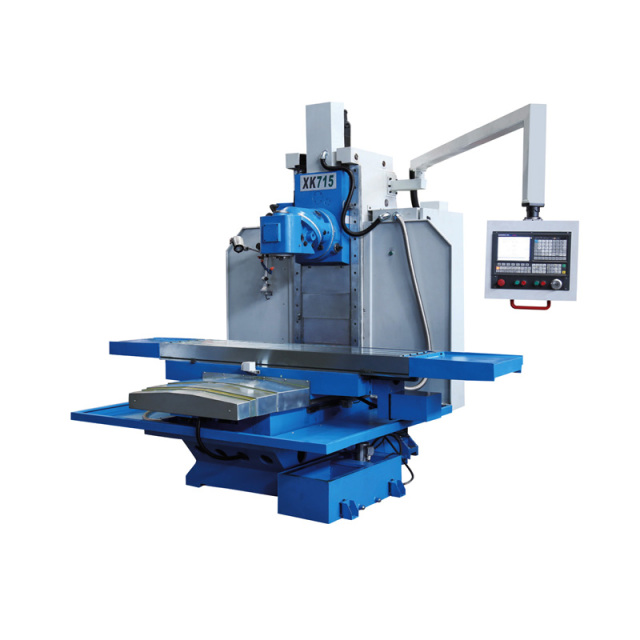

XK715
XK716
Spindle hole taper
7:24 ISO50
Spindle speed range
6-300, 30-1500r/min
Distance between spindle axis and column guideway
610mm
8-660mm
Distance between spindle nose and table surface (V)
10-650mm
10-700mm
Distance between spindle axis and table surface (H)
Table size
2100x500mm
2500x600mm
T-slot (No./width/pitch)
4pcs/20/100mm
5pcs/20/100mm
Table travel X axis
1500mm
1800mm
Table travel Y axis
650mm
700mm
Table feed X/Y axis
2.5-3000mm/min
Table feed Z axis
2.5-2500mm/min
Table rapid feed X/Y/Z axis
6000/6000/3000mm/min
Man motor power
11kW
Torque of X/Y/Z axis AC servo motor
18/23/18N.m
Cooling pump motor power
90W
Overall size
3220x2420x2800mm
4380x2520x2800mm
Net weight
7300kg
9000kg
Standard Accessories
Optional Accessories
SIEMENS808D
The 4th axis CNC rotary table
CNC dividing head
CNC system FANUC, Mitsubishi, GSK980MDC
