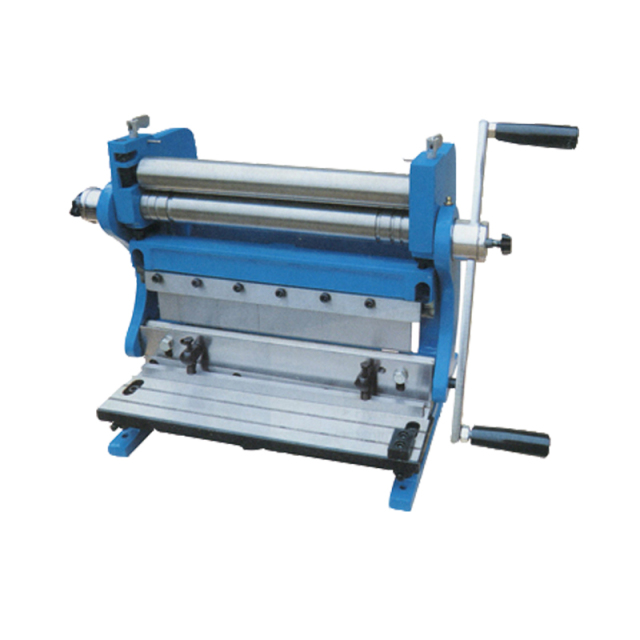

Ideal combination machine for sheet metal machining to a length of 305mm and a thickness of 1mm cutting stop.
Roll bending starting with diameter of 39mm.
Folding with a max angle of 90°.
Adjustable rear stop.
|
Specifications |
3-IN-1/200 |
3-IN-1/305 |
3-IN-1/610 |
3-IN-1/760 |
|
Bed width |
200mm |
305mm |
610mm |
760mm |
|
Max. shear thickness |
1mm |
1mm |
1mm |
1mm |
|
Max. bend thickness |
1mm |
1mm |
1mm |
1mm |
|
Bending angle |
90° |
90° |
90° |
90° |
|
Max. roll thickness |
1mm |
1mm |
1mm |
1mm |
|
Min. roll dia. |
29mm |
39mm |
39mm |
39mm |
|
N.W./G.W. |
19/20kg |
43/45kg |
112/123kg |
136/153kg |
|
Packing size |
54x24x28cm |
49x33x42cm |
84x41x66cm |
100x41x66cm |
