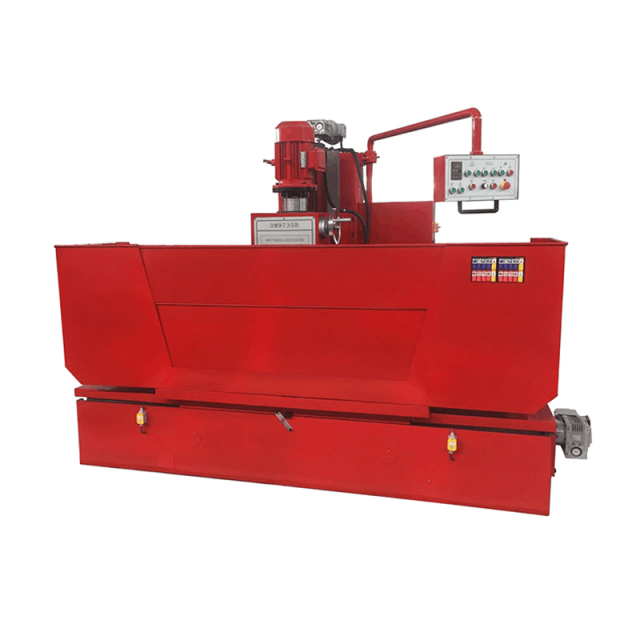

This machine is a vertical grinding and milling machine, with high grinding efficiency and accurate.
The table movement of this machine is driving by gear motor and ball screw, stepless speed frequency control, convenient and stable adjustment.
It's coupled with special fixtures to achieve multi-angle grinding cylinder and head.
The casting part of this machine is resin sand casting, deformation is small neat appearance.
The main spindle use inverter motor,stepless speed control.
|
Model |
3M9735Bx130 |
3M9735Bx150 |
3M9740Bx130 |
3M9740Bx150 |
|
Table size |
500x1300mm |
500x1500mm |
500x1300mm |
500x1500mm |
|
Max working length |
1300mm |
1500mm |
1300mm |
1500mm |
|
Max working width |
350mm |
350mm |
400mm |
400mm |
|
Max working height |
800mmmm |
800mm |
800mm |
800mm |
|
Spindle travel |
60mm |
60mm |
60mm |
60mm |
|
Table moving speed |
0-300mm/min |
0-300mm/min |
0-300mm/min |
0-300mm/min |
|
Emery wheel disk diameter |
360mm |
360mm |
410mm |
410mm |
|
Number of emery tiles |
8pc |
8pc |
10pc |
10pc |
|
Main motor power |
1.5/2.4kW |
1.5/2.4kW |
2.2kW |
2.2kW |
|
Cooling pump motor power |
0.04kW |
0.04kW |
0.04kW |
0.04kW |
|
Main motor rotation speed |
1400/700rpm |
1400/700rpm |
960rpm |
960rpm |
|
Machine dimensions |
2800x1050x1700mm |
2800x1050x2100mm |
2800x1050x1700mm |
2800x1050x2100mm |
|
Packing size |
3100x1130x2230mm |
3100x1130x2230mm |
3100x1130x2230mm |
3100x1130x2230mm |
|
N.W./G.W. |
2200/2500kg |
2300/2600kg |
2300/2600kg |
2400/2700kg |
