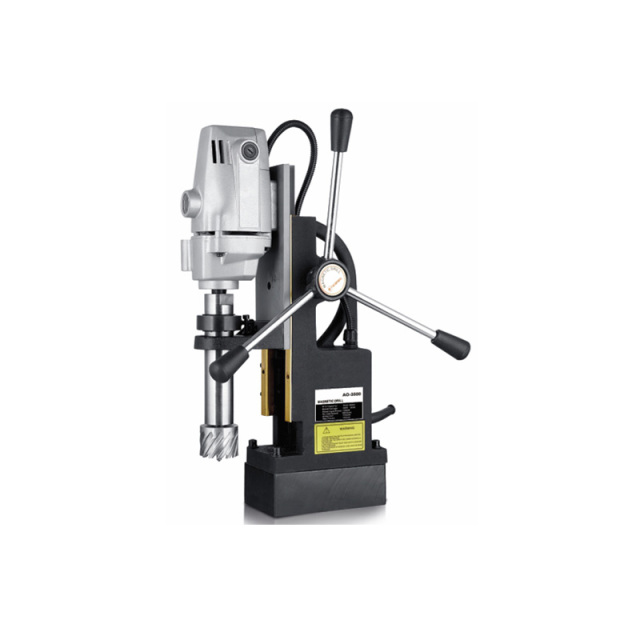

The handle lever handle base screw holes screwed before use, tighten, turn the handle, check whether the guides freedom of movement (slide up and down of the new machine will be feeling a little tight). Electrical power, to open the magnetic switch. Open magnet switch, indicator lights, and show that the magnet is in working condition, with iron bars on the magnet at the bottom, check for suction. Open drill switch, to check electric drill normal operation. Note: Move magnetic base, do not drag on the ground, to prevent magnetic damage.
Characteristic: Overcurrent torsion protection, Magnetic induction lamp.
Rated voltage
110V/230V
110V/230V
Rated frequency
50/60Hz
50/60Hz
Motor input power
1050W
1050W
No load speed
0-650r/min
680r/min
Max. drilling diameter
32mm
35mm
Max. attraction
8500N
11000N
Max. travel
120mm
140mm
Rated axis taper
Weldon shank 3/4"
Weldon shank 3/4"
N.W.
11kg
17.4kg
Packing size
35x16x33cm
31x16x44cm
Instruction 1. Use voltage: line voltage does not exceed ±5% of the voltage specified on the nameplate. 2. Use chuck or drill according to the mode of drills. 3. Use the drill bit must be sharp, electric drill for some reason suddenly brake or stuck drill, you must immediately shut down the drill switch (Note: Be sure not to turn off the magnetic base switch). 4. Carbon brush can not be used, to be promptly replaced (two brushes should be replaced at the same time). 5. If magnetic drill failure, should be repaired, and can not be used before the unrepaired. 6. The magnetic drill must be keep clean.
