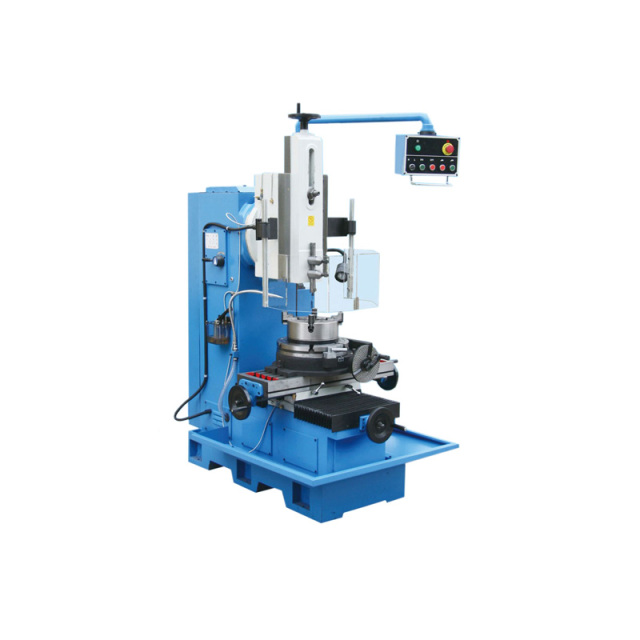

X, Y axis manual feed & manual dividing.
Square ram slideway, hardened & ground.
Head can swivel ±45º.
6 Ram cutting speeds available to choose suitable slotting speed.
With brake motor, rotary table, index plate, chuck and spindle cover for CE electric protection.
|
Specifications |
B5016C |
|
Max. slotting length |
160mm |
|
No. of ram strokes per minute |
23,32,44,48,67,92 |
|
Swing angle of ram |
±45° |
|
Table diameter |
350mm |
|
Vertical adjustment of ram |
160mm |
|
Distance between tool holding surface and column front |
485mm |
|
Distance between table surface and lower end of ram slide |
320mm |
|
Max. longitudinal travel of table |
360mm |
|
Max. cross travel of table |
320mm |
|
Max. rotary angle of table |
360° |
|
Tool shank size (WxH) |
25x40mm |
|
Max. cutting force |
4500N |
|
Max. table load-carrying capacity |
300kg |
|
Width of table center T-slot |
14mm |
|
Power of main drive motor |
1.5/0.85kW |
|
Rotating speed of main drive motor |
700/1410rpm |
|
Net weight |
1000kg |
|
Overall dimensions |
1270x1100x1700mm |
