After grinding machine for fine grinding of the worm. Backlash less than or equal to 5 lattices.
|
Type |
Actual size |
Overall length |
Boring barhole size |
Center dist |
Crosshole dia |
Offset |
N.W.(kg) |
|

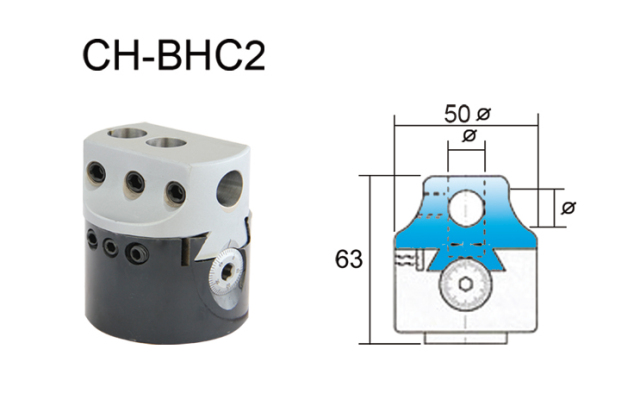

BHC2 inch |
2"Dia |
2-7/16'' |
1/2'' |
5/8'' |
1/2'' |
5/8'' |
0.7 |
|
BHC2 m/m |
50 |
63 |
12 |
15 |
12 |
15 |
0.7 |
|

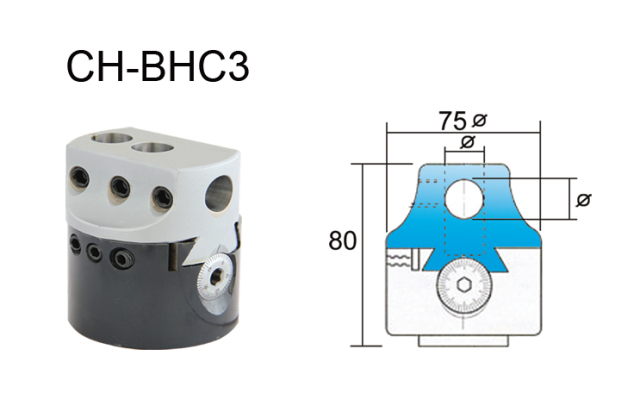

BHC3 inch |
3"Dia |
3-5/32'' |
3/4'' |
15/16'' |
3/4'' |
1'' |
2 |
|
BHC3 m/m |
75 |
80 |
18 |
23 |
18 |
25 |
2 |
|

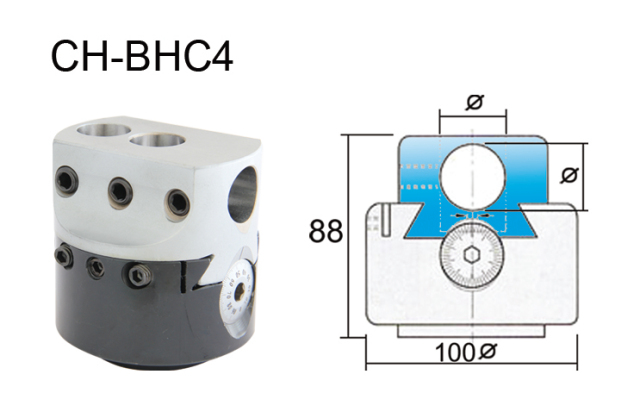

BHC4 inch |
4"Dia |
3-1/2'' |
1'' |
1-1/4'' |
1'' |
1'' |
4 |
|
BHC4 m/m |
100 |
88 |
25 |
32 |
25 |
25 |
4 |
