Specifications |

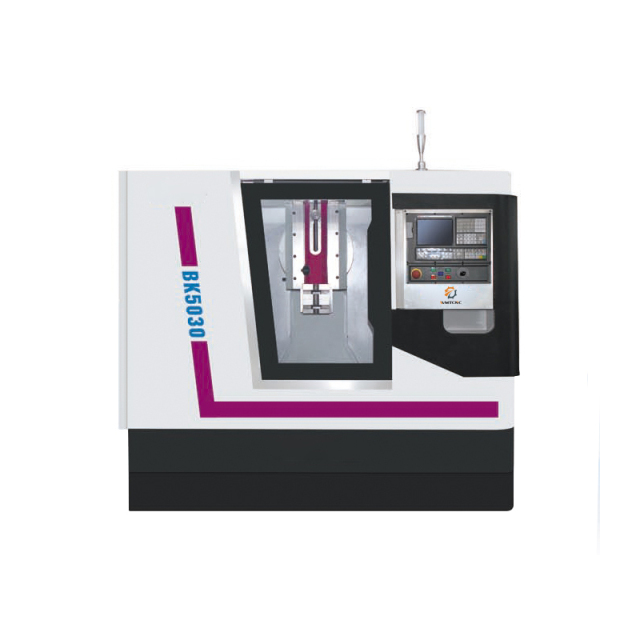

BK5030 |
|
The maximum length of ram |
300mm |
|
Ram adjustment stroke |
300mm |
|
Number of ram movement |
20/80n/min |
|
Worktable size |
550x405mm |
|
Table travel (X/Y) |
280x330mm |
|
The distance between the axis of the tool bearing hole and the forearm of the column |
505mm |
|
The distance between the end face of the cutter head support hole and the table |
540mm |
|
X direction motor torque |
6N.m |
|
Y direction motor torque |
6N.m |
|
Fast-moving (X) |
5m/min |
|
Fast-moving (Y) |
5m/min |
|
Ball screw (X) |
FFZD 3205-3/P4 |
|
Ball screw (Y) |
FFZD 3205-3/P4 |
|
Main motor power |
3.7kW |
|
Machine weight |
2800kg |
|
Package dimension |
2300/2200/2300mm |
