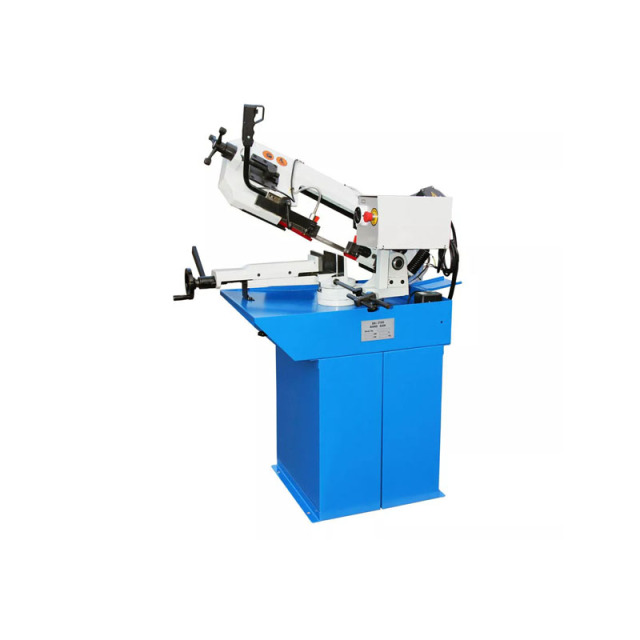

CE standard bandsaw, max cutting 6” at 90°.
Cast iron saw frame miter max 45°.
Quick action lock/release lever for swivel head.
Coolant system to help clean chips on blade and lubrication the teeth.
Electronic trigger handle lets you easily turn the saw on and off. Also for manual descent.
Control panel mounted for easy access.
Specifications |
BS-215G |
|
Capacity |
Circular @90° |
150mm (6”) |
Rectangular @90° |
200x120mm (7.8”x4.7”) |
|
Circular @45° |
120mm (4.7”) |
|
Rectangular @45 ° |
130x90mm (5”x3.5”) |
|
Blade speed |
@50Hz |
40/80m/min |
Blade size |
20x0.9x2060mm |
|
Motor |
0.6/0.85kW 0.8/1.1HP (3Ph) |
|
Drive |
Gear |
|
Packing size |
1160x710x790mm (body) |
|
N.W./G.W. |
212/245 kg |
Standard Accessories |
Coolant system |
Saw blade |
Stop rod |
