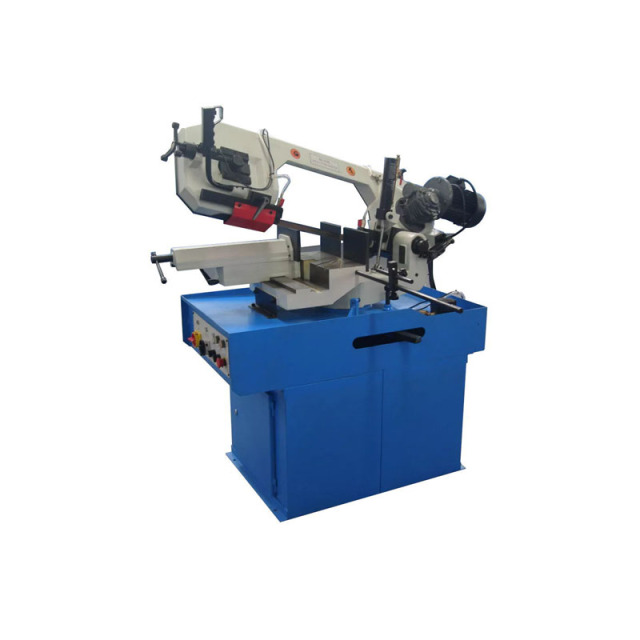

9"cutting capacity at 90°.Three phase double speed motor.Gear drive, powerful cutting band saw machine.Hydraulic descent.Dual miter on both side, max. 60°.Quick action lock/release lever for swivel head.
Specifications
BS-315G
Capacity
Circular @90°
230mm (9”)
Rectangular @90°
315x170mm
Circular @60° (Right)
130mm
Rectangular @60° (Right)
130x130mm
Circular @45° (Left & Right)
210mm
Rectangular @45° (Left & Right)
210x170mm
Blade speed
@50Hz
40/80m/min
@60Hz
48/96m/min
Blade size
27x0.9x2825mm
Motor
0.75/1.1kW
Drive
Gear
Packing size
1630x870x970mm (body)720x560x600mm (stand)
N.W./G.W.
350/390kg
Standard Accessories
Optional Accessories
Coolant system
Stand and support
Saw blade
Stop rod
