Max. cutting 330mm at 90°.Hydraulic clamping vice to fix the material well.Saw frame swivel on both side to get angle cutting.Quick lock of the saw frame swivel.Hydraulic descent of the saw frame.Gear drive, double speed motor.
Specifications

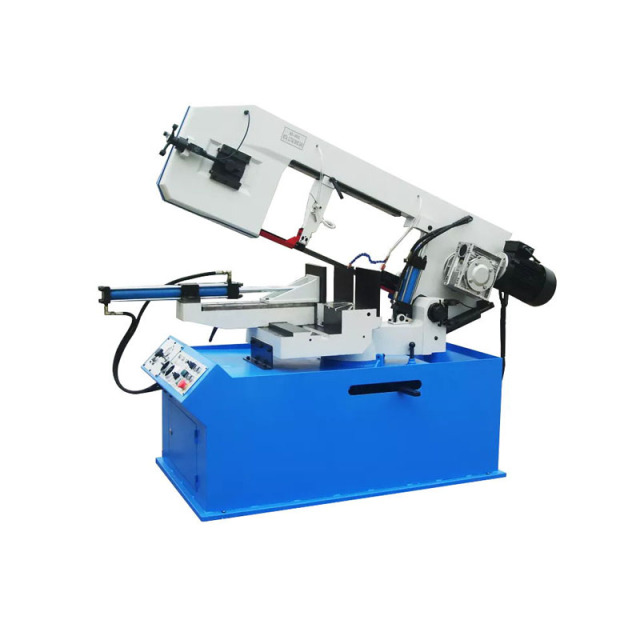

BS-460G
Capacity
Circular @90°
330mm (13”)
Rectangular @90°
460x250mm
Circular @60° (Right)
205mm
Rectangular @60° (Right)
205x250mm
Circular @45° (Left & Right)
305mm
Rectangular @45° (Left & Right)
305x250mm
Blade speed
@50Hz
40/80m/min
@60Hz
48/96m/min
Blade size
27x0.9x3960mm
Motor
1.5/2.2kW
Drive
Gear
Packing size
2310x1070x1630mm
N.W./G.W.
750/830kg
Standard Accessories
Optional Accessories
Coolant system
PLC
Saw blade
Servo motor
Stop rod
