Specifications

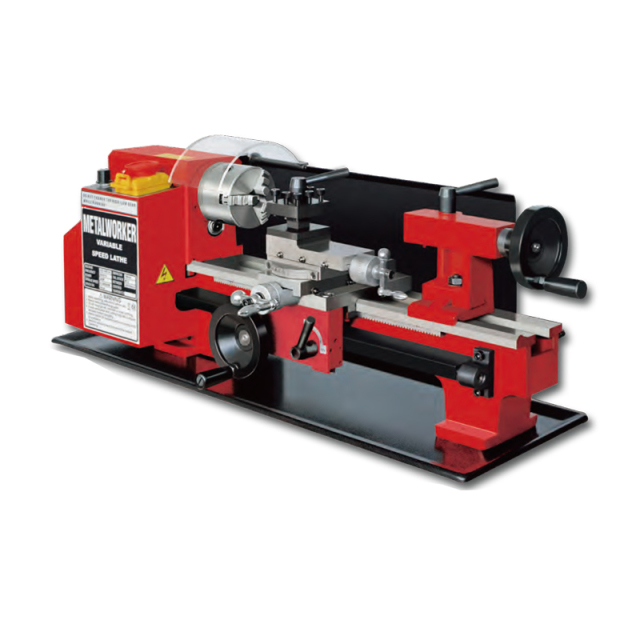

C2
Swing over bed
180mm
Distance between centers
Model 200
200mm
Model 300
300mm
Model 350
350mm
Hole through spindle
20mm
Spindle taper
MT3
Tailstock taper
MT2
Cross slide travel
65mm
Compound travel
55mm
Thread range
Metric version
0.4-2.0mm (10 thread pitches)
Imperial version
12-52TPI (18 thread pitches)
Motor output power
250W
Spindle speed (variable speed)
Low range
100-1100rpm ±10%
High range
100-2500rpm ±10%
Overall dimension
600x300x300mm
700x300x300mm
800x300x300mm
Packing size
690x360x390mm
790x360x390mm
900x420x390mm
N.W./G.W.
33/36kg
37/40kg
48/54kg
Optional Accessories
Cutter 5pcs set 8x8mm S/N: 10004
DIN 4971R Straight cutter
DIN 4975R Tip cutter
DIN 4980R Right angle cutter
DIN 4980L Left angle cutter
DIN 4981R Cutter
Cutter 11pcs set 8x8mm S/N: 10005
DIN 4972R Angle cutter
DIN 4973R Bore cutter
DIN 4974R Bore cutter
DIN 4975 Tip cutter
DIN 4976 Wide edge cutter
DIN 4977R Right external turning cutter
DIN 4978R External turning cutter
Cutter 6pcs set 8x8mm S/N: 10006
DIN 4976R Wide edge cutter
Face plate Φ160mm T-slot size 12mm S/N:10007
Clamping kit for face plate bolt size 8mm S/N: 10007A
Steady rest S/N: 10008
Follow rest S/N: 10009
4-jaw independent chuck S/N: 10010 Φ80mm
4-jaw independent chuck S/N: 10029A Φ100mm with flange
Quick change cutter rest S/N: 10011
Tool post S/N: 10011-1
Cutter holder S/N: 10011-2
Tailstock chuck dia.13mm + MT2 S/N: 10012
Spindle center MT3 S/N: 10013
Rolling center MT2 S/N: 10014
Lathe dog S/N: 10015
Cutter 2pcs set S/N: 10016 S/N: 10016-1, S/N: 10016-2
Cutter tip replaceable 7pcs set 8x8mm S/N: 10200
Tin coated replacement 7pcs set S/N: 10200-1
Mill attachment holding capacity 50mm S/N: 10061
Wood tool rest with center MT3 S/N: 10064
3-jaw chuck S/N: 10100 Φ100mm
3-jaw chuck S/N: 10100A Φ100mm with flange
Knurling tool holder S/N: 10130
Cut-off tool S/N: 10145
Carriage stop S/N: 10182
Stand overall dimension: 860x310x890mm
S/N: 10253A For C2/200, S/N: 10253C For C2/300
C2 or C3 owner, replace to DRCD by yourself. Digital readout for cutting depth kit (DRCD kit) S/N: 10292
Tailstock with DRO, replace to DRCD by yourself, DRCD kit S/N: 10322
