Integrated and segregate foot stand for optional.Independent quick move system on carriage.Precision lubrication system on headstock.Clutch on headstock.11KW(15HP) main motor for optional.
Specifications

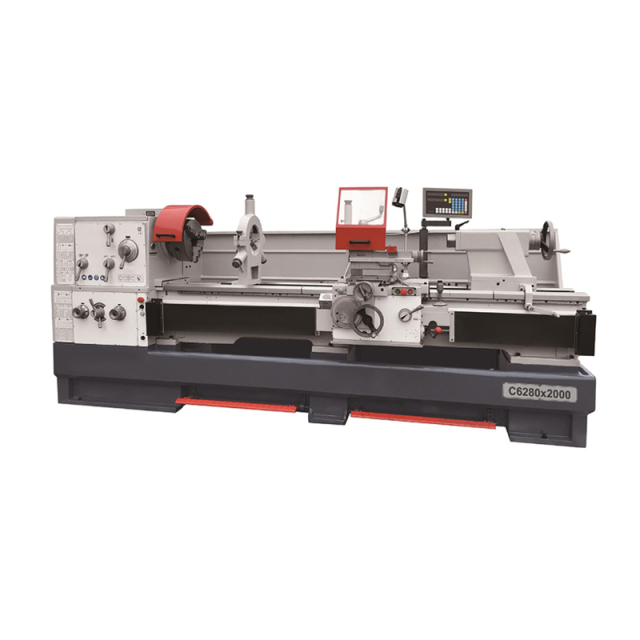

C6280
Swing over bed
800mm
Swing over cross slide
570mm
Swing over gap
1035mm
Distance between centers
1500/2000/3000mm
Valid length of gap
250mm
Bed width
400mm
Spindle nose
D1-8
Spindle bore
105mm
Taper of spindle bore
113mm (1:20)
Spindle speed
25-1600rpm
Compound rest travel
230mm
Cross slide travel
368mm
Max. section of tool
25x25mm
Lead screw thread
12mm or 2TPI
Longitudinal feed
0.044-1.48mm/rev
Cross feed
0.022-0.74mm/rev
Metric threads range
54 Kinds 0.45-120mm
Inch threads range
54 Kinds 7/16-80TPI
Threads module pitches
46 Kinds 0.25-60MP
Threads diametral pitches
42 Kinds 7/8-160DP
Quill diameter
90mm
Quill travel
235mm
Quill taper
MT5
Motor
7.5kW (10HP)
Coolant pump power
0.1kW
Net weight
3175kg3455kg3820kg
Gross weight
3695kg4005kg4495kg
Standard Accessories
Optional Accessories
3 jaw chuck
Taper turning attachment
Change gears Set
Live center
Chasing dial indicator
Working light
Reduction sleeve
Leadscrew guard
Dead centers
Chuck guard
Full length splash guard
Quick change tool post
Coolant system
Drill chuck+drill arbor
Brake system
DRO
4 jaw chuck
Face plate
Steady rest
Follow rest
Toolbox & tools
