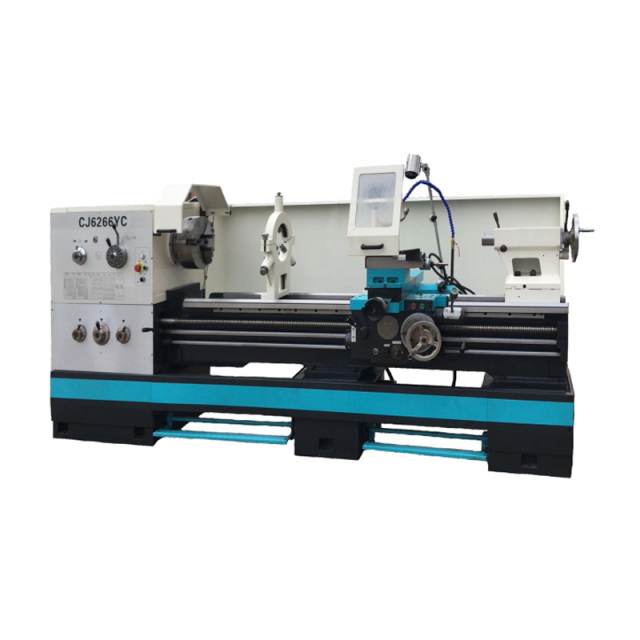

The guide surface hardened by super-frequency and precision ground.All gears hardened and precision ground, very lower voice.Spindle with high rigidity and accuracy.Rapid feed structure in apron.Adopt clutch system in headstock.
Specifications
CJ6250YC
CJ6256YC
CJ6266YC
CJ6280YC
Max. swing over bed
500mm
560mm
660mm
800mm
Max. swing over carriage
300mm
360mm
420mm
Max. swing over gap
710mm
770mm
870mm
1000mm
Max. length of workpiece
1000/1500/2000/3000/4000mm
Effective gap length
230mm
Bed width
405mm
Spindle bore
105mm (D8/D11)
Spindle taper of bore
113mm (1:20)
Spindle number of speeds
12 steps
Spindle range of speeds
36-1600rpm
Threads metric pitches
1-14mm / 22 kinds
Threads imperial pitches
28-2TPI / 25 kinds
Thread diametral pitches
56-4DP / 24 kinds
Threads module pitches
0.5-7mm / 18 kinds
Range of feeds longitudinal
0.063-2.52mm (0.0023"-0.0937")
Range of feeds cross
0.027-2.73mm (0.0011"-0.0404")
External diameter of the tailstock quill
75mm
Max. travel of tailstock quill
150mm
Quill taper
MT5
Max. travel of compound rest
Max. travel of cross slide
260mm
410mm
Max. size of tool shank
25x25mm
Power of main motor
7.5kW
Overall dimension (LxWxH)
2800/3300/3700/4700/5700x1150x2200mm
Net weight (CJ6250YC)
2300/2650/2900/3250/3750kg
Net weight (CJ6256YC)
2400/2750/3000/3350/3850kg
Net weight (CJ6266YC)
2500/2750/3000/3400/3900kg
Net weight (CJ6280YC)
2650/2900/3150/3550/4050kg
Standard Accessories
Optional Accessories
3 jaw chuck
4 jaw chuck
Face plate
Drive plate
Reduction sleeve
Steady rest
Dead center
Follow rest
Wrench
Thread cutting dial
Oil gun
Live center
Quick change tool post
Taper turning attachment
4 position longitudinal automatic trip
DRO
