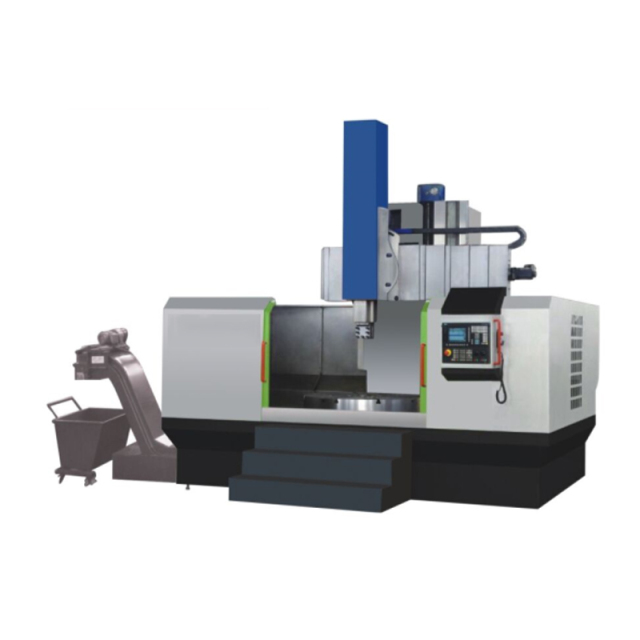

CK51 series CNC single column vertical lathe is a high technology mechatronic product which is use new design manufacturing technology and CAD optimum design method, configuration newest functional unit. Achieve the heavy cut, worktable heavy load, dynamic and static high rigidity, each movement safe and reliable, long service life and high processing efficiency.
Suitable for hard alloy and ceramics knifes, Rough, semi and finish machining ferrous metal, non-ferrous metals and some metal parts inside/outside cylindrical surface, circular conical surface, flat surface, grooving, screw thread and revolution surface etc.
|
Specifications |
CK5108B |
CK5112B |
CK5116B |
CK5120B |
CK5123B |
CK5126B |
|
Max. turning diameter |
800mm |
1250mm |
1600mm |
2000mm |
2300mm |
2600mm |
|
Table diameter |
720mm |
1000mm |
1400mm |
1800mm |
2000mm |
2250mm |
|
Max. height of workpiece |
800mm |
1000/1200mm |
1000/1400mm |
1250/1400mm |
1350/1600mm |
1350/1600mm |
|
Max. work piece weight |
2t |
3t |
5t |
8t |
8t |
8t |
|
Worktable max. torque |
12.5kN.m |
17kN.m |
25kN.m |
32kN.m |
35kN.m |
35kN.m |
|
Worktable range of speed (16 steps) |
10-315r/min |
6.3-200r/min |
5-160r/min |
3.2-100r/min |
3.2-100r/min |
3.2-100r/min |
|
Max. cutting force vertical toolpost |
18kN |
18kN |
22kN |
22kN |
22kN |
22kN |
|
Swivel of vertical toolpost |
±30° |
±30° |
±30° |
±30° |
±30° |
±30° |
|
Tool post range of feeds (12 steps) |
0.1-500mm/min |
0.1-500mm/min |
0.1-500mm/min |
0.1-500mm/min |
0.1-500mm/min |
0.1-500mm/min |
|
Horizontal throw of Vertical toolpost |
570mm |
700mm |
915mm |
1050mm |
1180mm |
1380mm |
|
Horizontal throw of ram toolpost |
650mm |
650mm |
800mm |
800mm |
1000mm |
1000mm |
|
Tool post quick travel speed |
2500mm/min |
2500mm/min |
3750mm/min |
3750mm/min |
3750mm/min |
3750mm/min |
|
Cross beam lifting speed |
440mm/min |
440mm/min |
440mm/min |
440mm/min |
440mm/min |
440mm/min |
|
Section dimension of tool bar (WxH) |
30x40mm |
30x40mm |
30x40mm |
30x40mm |
30x40mm |
30x40mm |
|
Power of main motor |
22kW |
22kW |
30kW |
30kW |
30kW |
37kW |
|
Overall dimensions (LxWxH) |
3580x2300x2730mm |
3860x2450x3580mm |
5000x3200x3870mm |
5400x3400x4000mm |
5600x3350x4200mm |
5900x3500x4200mm |
|
Weight of machine (approx.) |
7.8t |
9.5t |
12.7t |
17.5t |
19.5t |
22t |
