Precision ground and hardened bedways.Headstock gears are made of high quality steel, ground and hardened.Two speed motor for optional.With door and drawer on foot stand for optional.Circular appearance for optional.
Specifications

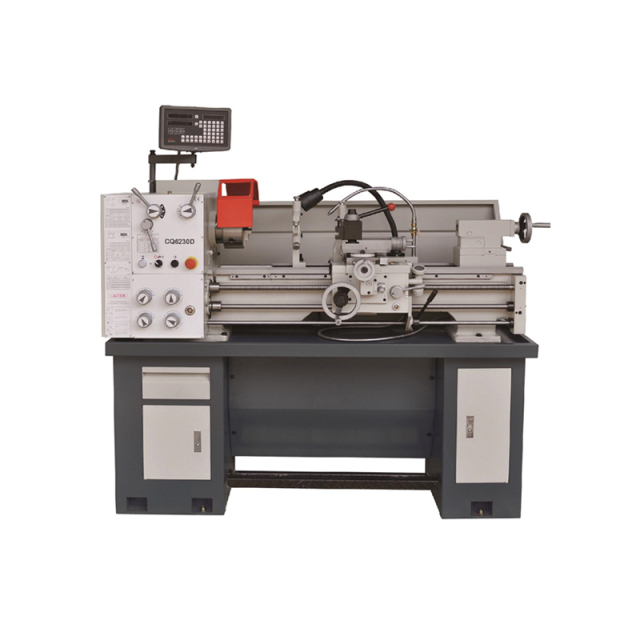

CQ6230D
CQ6230DV
Swing over bed
300mm
Swing over cross slide
178mm
Swing over gap
430mm
Distance between centers
714/914mm
914mm
Length of turning
560/760mm
760mm
Spindle bore
38mm
Taper of spindle bore
MT5
Speed steps
9
Variable
Spindle speed
75-1400rpm
60-2200rpm
Metric threads range (26 kinds)
0.4-7mm
Inch threads range (34 kinds)
4-56TPI
Pitches of three feed leadscrews
3mm or 8TPI
Longitudinal feed metric
0.052-1.392mm/rev
Cross feed metric
0.014-0.38mm/rev
Saddle longitudinal travel
600/800mm
800mm
Cross slide travel
160mm
Top slide travel
85mm
Quill travel
95mm
Quill taper
MT3
Main motor power
1.1kW (1.5HP)
Motor frequency
60Hz or 50Hz
N.W./G.W.
480/550kg
550kg
Packing size (LxWxH)
148/168x75x142cm
168x75x142cm
Standard Accessories
Optional Accessories
3 jaw chuck
4 jaw chuck
Dead center
Follow rest
Toolbox & tools
Steady rest
Splash guard
Face plate
Chip tray
Drive plate
Threading chasing dial
Live center
Coolant system
Brake
Stopper
Leadscrew guard
Chuck guard
Tool post guard
Drill chuck & drill arbor
Quick change tool post
Taper turning attachment
DRO
Stand
