Home > All Collections > Machines > Lathe > Horizontal Lathe > CQ6232D,CQ6236D Bench Lathe
  • CQ6232D,CQ6236D Bench Lathe,SENMO Industrial
  • CQ6232D,CQ6236D Bench Lathe,SENMO Industrial

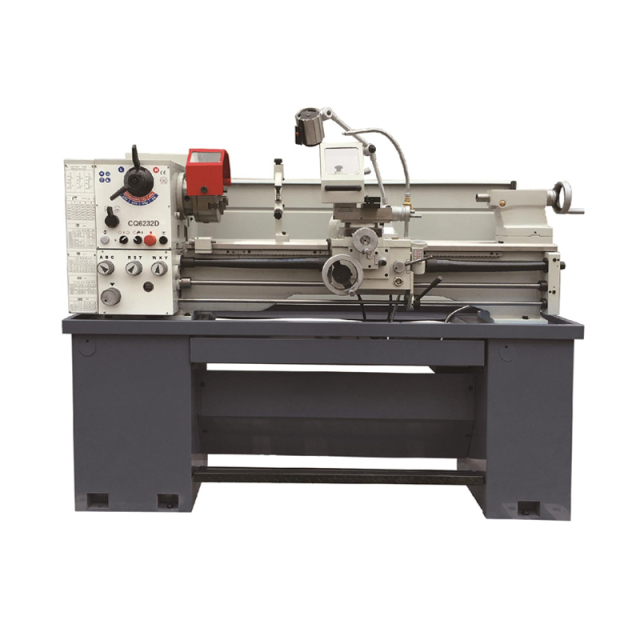

CQ6232D,CQ6236D Bench Lathe

No change gear in tool box.
Precision ground and hardened bedways.
Headstock gears are made of high quality steel, ground and hardened.
With door and drawer on foot stand for optional.
Φ51mm spindle bore for optional.
Variable speed model for optional.

Request a Quote
Add to Cart View Quote List
  • CQ6232D,CQ6236D Bench Lathe,SENMO Industrial
  • Specifications
  • Accessories

Specifications

CQ6232D

CQ6236D

Swing over bed

330mm

360mm

Swing over cross slide

198mm

224mm

Swing over gap

476mm

502mm

Length in gap

210mm

210mm

Center height

166mm

179mm

Distance between centers

750/1000mm

750/1000mm

Spindle bore

38/51mm

38/51mm

Spindle nose

D1-4 of D1-5

D1-4 of D1-5

Taper of spindle bore

MT5

MT5

Speed steps

8

8

Spindle speed

70-2000rpm

70-2000rpm

Cross slide travel

170mm

170mm

Compound rest travel

95mm

95mm

Lead screw thread

8TPI or 3mm

8TPI or 3mm

Feed rod diameter

19mm

19mm

Max. section of tool

16mmx16mm

16mmx16mm

Threads imperial pitches

42 Nos. 4-112TPI

42 Nos. 4-112TPI

Threads metric pitches

44 Nos. 0.1-7mm

44 Nos. 0.1-7mm

Threads diametral pitches

25 Nos. 16-112DP

25 Nos. 16-112DP

Threads module pitches

34 Nos. 0.1-1.75MP

34 Nos. 0.1-1.75MP

Longitudinal feed imperial

24 Nos. 0.00168-0.1175"/rev

24 Nos. 0.00168-0.1175"/rev

Longitudinal feed metric

24 Nos. 0.046-3.249mm/rev

24 Nos. 0.046-3.249mm/rev

Cross feed imperial

32 Nos. 0.00046-0.03231"/rev

32 Nos. 0.00046-0.03231"/rev

Cross feed metric

24 Nos. 0.01-0.703mm/rev

24 Nos. 0.01-0.703mm/rev

Quill diameter

32/42mm

32/42mm

Quill travel

100mm

100mm

Quill taper

MT3

MT3

Main motor power

1.5kW (2HP)

1.5kW (2HP)

Coolant pump power

0.04kW

0.04kW

N.W./G.W.

510/630kg (750mm)

510/630kg (750mm)

540/645kg (1000mm)

540/645kg (1000mm)

Packing size (LxWxH)

168x76x158cm (750mm)

168x76x158cm (750mm)

193x76x153cm (1000mm)

193x76x153cm (1000mm)

Standard Accessories

Optional Accessories

3 jaw chuck

4 jaw chuck

Dead center

Follow rest

Toolbox & tools

Steady rest

Splash guard

Face plate

Chip tray

Drive plate

Threading chasing dial

Live center



Coolant system



Brake



Stopper



Leadscrew guard



Chuck guard



Tool post guard



Drill chuck & drill arbor



Quick change tool post



Taper turning attachment



DRO



Stand
