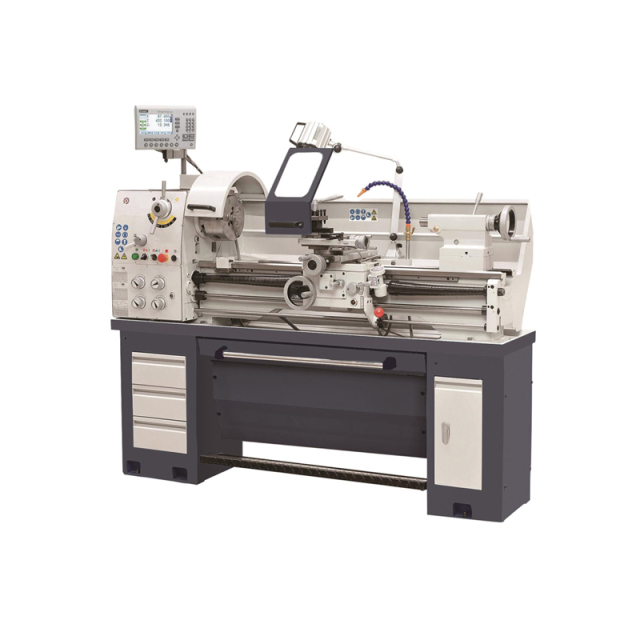

Precision ground and hardened bedways.Spindle is supported by precision roller bearing.Headstock gears are made of high quality steel, ground and hardened.With door and drawer on foot stand for optional.Variable speed model for optional.
Specifications
CQ6232G
CQ6236G
Swing over bed
330mm
360mm
Swing over cross slide
198mm
224mm
Swing over gap
476mm
502mm
Swing in length
210mm
Center height
166mm
179mm
Distance between centers
750/1000mm
Bed width
187mm
Bed length
1405/1655mm
Bed height
290mm
Spindle bore
38/51mm
Spindle nose
D1-4
Taper in nose
MT5
Speed number
8
Spindle speed
70-2000rpm
Cross slide width
130mm
Cross slide travel
170mm
Compound rest width
80mm
Compound rest travel
95mm
Lead screw diameter
22mm
Lead screw thread
8TPI or 3mm
Feed rod diameter
19mm
Cutting tool max section
16x16mm
Threads imperial pitches
34 Nos. 4-56TPI
Threads metric pitches
26 Nos. 0.4-7mm
Longitudinal feed imperial
32 Nos. 0.002-0.0548"/rev
Longitudinal feed metric
32 Nos. 0.052-1.392mm/rev
Cross feed imperial
32 Nos. 0.0007-0.0187"/rev
Cross feed metric
32 Nos. 0.014-0.380mm/rev
Quill diameter
32mm
Quill travel
100mm
Quill taper
MT3
Standard Accessories
Optional Accessories
3 jaw chuck
4 jaw chuck
Dead center
Follow rest
Toolbox & tools
Steady rest
Splash guard
Face plate
Chip tray
Drive plate
Threading chasing dial
Live center
Coolant system
Brake
Stopper
Leadscrew guard
Chuck guard
Tool post guard
Drill chuck & drill arbor
Quick change tool post
Taper turning attachment
DRO
Stand
