Precision ground and hardened bedways.Headstock gears are made of high quality steel, ground and hardened.With door and drawer on foot stand for optional.Φ51mm spindle bore for optional.Variable speed model for optional.
Specifications

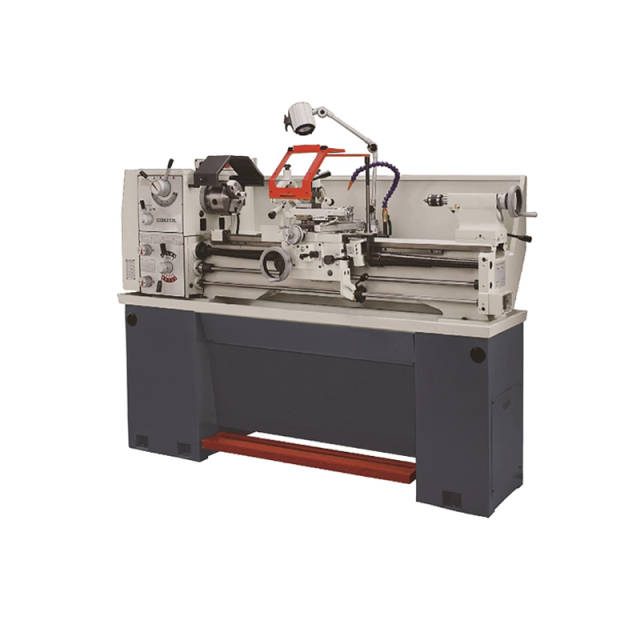

CQ6232L
CQ6236L
Swing over bed
330mm
360mm
Swing over cross slide
198mm
215mm
Swing over gap
476mm
506mm
Distance between centers
500/750/1000mm
Bed width
187mm
Spindle bore
38/51mm
Spindle nose
D1-4/D1-5
Taper of spindle bore
MT5
Spindle speed
70-2000rpm
Compound rest travel
68mm
Cross slide travel
160mm
Lead screw diameter
22mm
Feed rod diameter
19mm
Inch thread range
36NOS. 3-1/2-80TPI
Metric thread range
27NOS. 0.45-10mm
Threads module range
20NOS. 0.25-5MP
Threads diametric range
32NOS. 7-160DP
Longitudinal feed metric
0.067-1.019mm/rev
Cross feed metric
0.018-0.275mm/rev
Quill diameter
32mm
Quill travel
100mm
Quill taper
MT3
Main motor power
1.5kW
Standard Accessories
Optional Accessories
3 jaw chuck
4 jaw chuck
Dead center
Follow rest
Toolbox & tools
Steady rest
Splash guard
Face plate
Chip tray
Drive plate
Threading chasing dial
Live center
Coolant system
Brake
Stopper
Leadscrew guard
Chuck guard
Tool post guard
Drill chuck & drill arbor
Quick change tool post
Taper turning attachment
DRO
Stand
