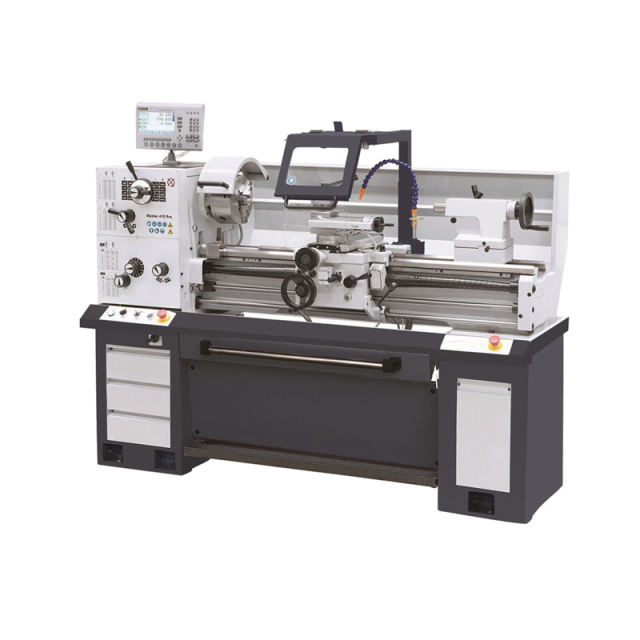

Precision ground and hardened bedways.Headstock gears are made of high quality steel, ground and hardened.Φ51mm spindle bore for optional.Variable speed model for optional.
Specifications
CQ6236F
CQ6236V
Swing over bed
356mm
Swing over cross slide
220mm
Swing over gap
506mm
Valid length of gap
145mm
Distance between centers
750/1000mm
Bed width
206mm
Spindle bore
38/51mm
Spindle nose
D1-4
Taper of spindle bore
MT5
Speed steps
16
Variable
Spindle speed
45-1800rpm
30-3000rpm
Compound rest travel
95mm
Cross slide travel
180mm
Max. section of tool
16x16mm
Lead screw thread
8TPI or 4mm
Longitudinal feed metric
0.043-0.653mm/rev
Cross feed metric
0.027-0.413mm/rev
Threads metric pitches
0.4-7mm
Threads inch pitches
4-56TPI
Quill diameter
45mm
Quill travel
120mm
Quill taper
MT3
Main motor power (double speeds)
1.5/2.4kW (2/3HP)
Coolant pump power
0.04kW
Overall dimension (LxWxH)
182x74x125cm
N.W./G.W.
730/860kg
750/880kg
Packing size (LxWxH)
193x76x158cm
193x92x159cm
Standard Accessories
Optional Accessories
3 jaw chuck
4 jaw chuck
Dead center
Follow rest
Toolbox & tools
Steady rest
Splash guard
Face plate
Chip tray
Drive plate
Threading chasing dial
Live center
Coolant system
Brake
Stopper
Leadscrew guard
Chuck guard
Tool post guard
Drill chuck & drill arbor
Quick change tool post
Taper turning attachment
DRO
Stand
