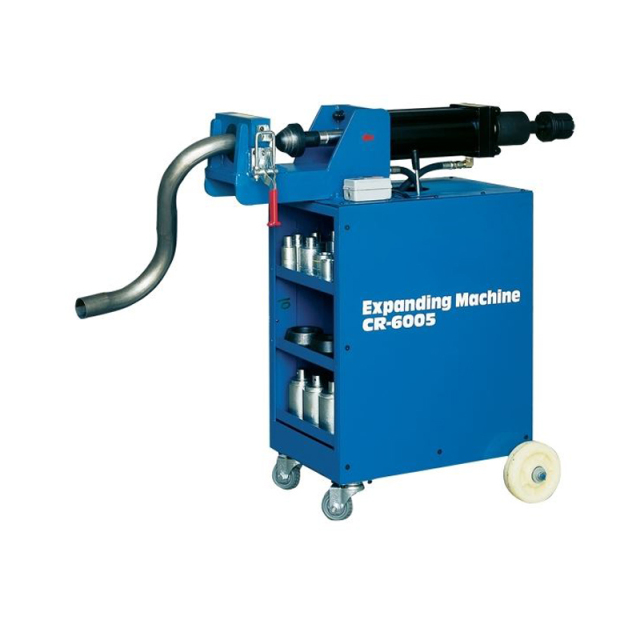

The Expanding and Reducing Machine is designed as a movable type with wheels that can be used and adjusted. Users can make instant modification, bend and pipe joint at any time without any restriction. Offering the convenient, fast and safe operation to the modification factory.
|
Specifications |
CR-6005 |
|
Bending capacity |
1/2" OD to 2-1/2" (3") |
|
Max. bending diameter |
2-1/2" (3") |
|
Swaging capacity |
1/2" OD, 1" OD to 3" OD |
|
Motor/power supply |
2HP/1 Phase, 3HP/3 Phase |
|
|
220, 230, 380, 440V |
|
Hydraulic pump output |
3A-/4R |
|
Operation mode |
Button and foot operated controls |
|
Hydraulic filter |
Canister type |
|
Max. bending force |
60000lb |
|
Depth of bend plate |
Preset to stop any desired bend depth |
|
Measurement |
850x550x1000mm |
|
(*) Special radius dies and power supplies are available. |
|
