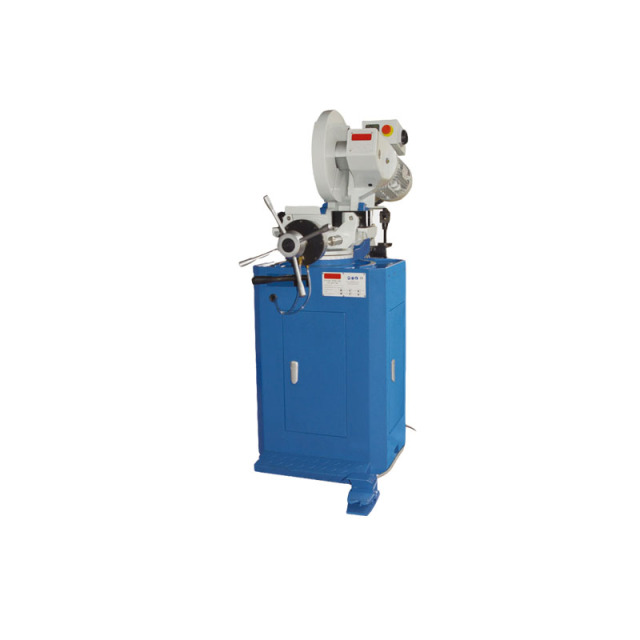

Powerful, maintenance-free motor.
Central tensing vise, quadruple guiding, with individually adjustable jaws.
Cutting is always performed at an optimum position towards the workpiece.
Clamping system with 4 levers.
Solid machine substructure with holes to assemble the material stand on both sides.
Removable coolant tank with integrated powerful pump.
High-grade, fracture-proof and movable protective device with rapid opening mechanism provides optimum protection when cutting.
Functional, all-surrounding movable protective device with rapid opening mechanism.
Long handle allows sawing without great effort.
Built-in switch with handle.
Well readable angular scale allows precise sawing.
Head swivel range ±45°.
Rapid adjustment of the mitre.
|
Pitch of Saw Blade |
|||
|
Solid bar |
Pitch |
Pipe |
Pitch |
|
Φ10-15 |
4-6 |
Thin pipe |
3-6 |
|
Φ15-20 |
6-8 |
Medium pipe |
6-8 |
|
Φ20-30 |
8-10 |
Thick wall pipe |
8-12 |
|
Φ30-50 |
10-12 |
||
|
Φ50-70 |
12-14 |
||
|
Φ70-80 |
14-16 |
||
|
Specifications |
CS315SA |
CS350SA |
|
|
Motor power |
1.5kW/0.75kW |
1.5kW/1.1kW |
|
|
Saw blade speed |
38/19rpm |
38/19rpm |
|
|
Head rotation |
±45° |
±45° |
|
|
Clamping vise |
Double |
Double |
|
|
Max. vise opening |
140mm |
150mm |
|
|
Coolant pump motor |
40W |
40W |
|
|
Air pressure |
6kg/cm2 |
6kg/cm2 |
|
|
Saw blade |
Diameter |
315mm |
350mm |
|
Bore |
40mm |
40mm |
|
|
Pin holes |
2xΦ8xPCD55mm |
2xΦ8xPCD55mm |
|
|
Capacity |
Circular @0° |
70mm |
120mm |
|
Square @0° |
70x70mm |
120x120mm |
|
|
Rectangular @0° |
130x70mm |
135x110mm |
|
|
Circular @45° |
70mm |
110mm |
|
|
Square @45° |
70x70mm |
110x110mm |
|
|
Rectangular @45° |
90x70mm |
110x90mm |
|
|
N.W./G.W. |
270/320kg |
290/345kg |
|
|
Packing size |
1100x630x1560mm |
1130x650x1580mm |
|
