2T/4T Mode.
With perfect over current, overheating, under voltage protection.
Current digital display.
Pressure adjustment and indicate on panel.
Gas inspect function.
Digital panel control.
|
Specifications |

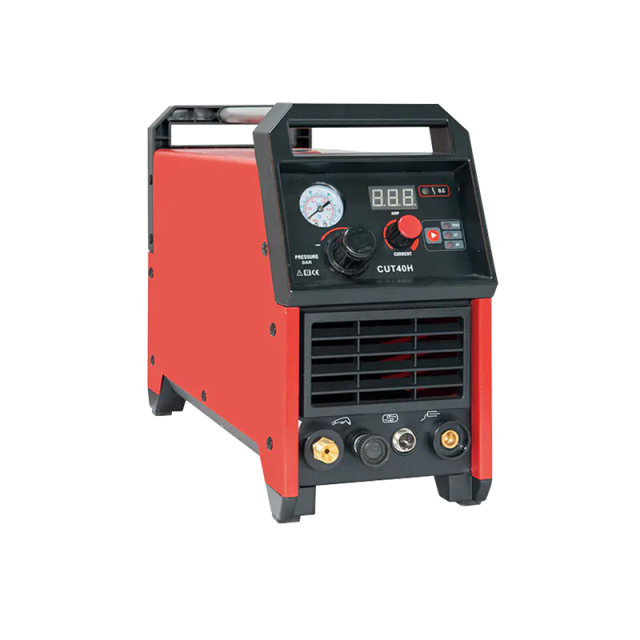

CUT40H/NH |

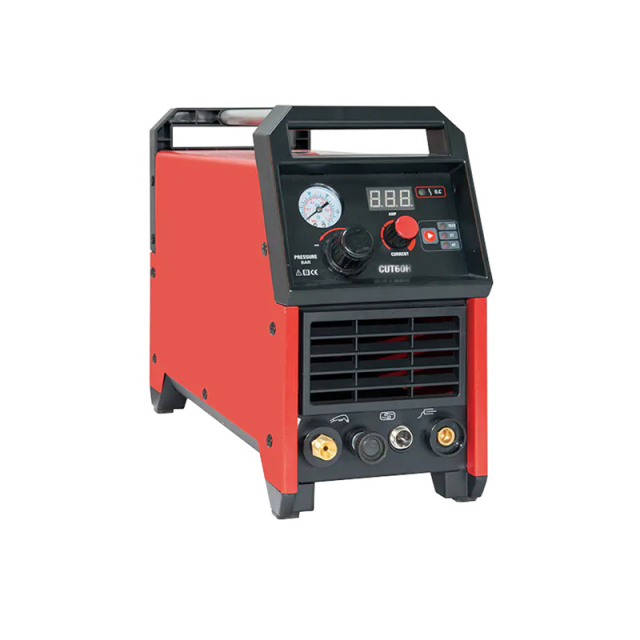

CUT60H/NH |
|||
|
Power supply voltage |
115/230V±15% |
115/230V±15% |
380V±15% |
||
|
Frequency |
50/60Hz |
||||
|
Voltage |
115V |
230V |
115V |
230V |
380V±15% |
|
Rated input power |
3.5kW |
4.8kW |
3.5kW |
7.8kW |
7.3kW |
|
Rated input current |
41.1A |
28.6A |
41.1A |
46.5A |
12A |
|
Duty cycle (40°C 10min) |
60% 30A |
60% 40A |
60% 30A |
40% 60A |
40% 60A |
|
No load voltage |
325V |
325V |
325V |
325V |
289V |
|
Welding current range |
15-30A |
15-40A |
20-30A |
20-60A |
20-60A |
|
Efficiency |
≥80% |
≥85% |
|||
|
Power factor |
0.73 |
0.93 |
|||
|
Protection class |
IP21 |
||||
|
Insulation class |
F |
||||
|
Cooling |
AF |
||||
|
Cutting thickness |
10mm |
12mm |
10mm |
20mm |
20mm |
|
Net weight |
10.4kg |
14.1kg |
|||
|
Gross weight |
16.4kg |
20.4kg |
|||
|
Packing size |
530x305x565mm |
605x305x555mm |
|||
