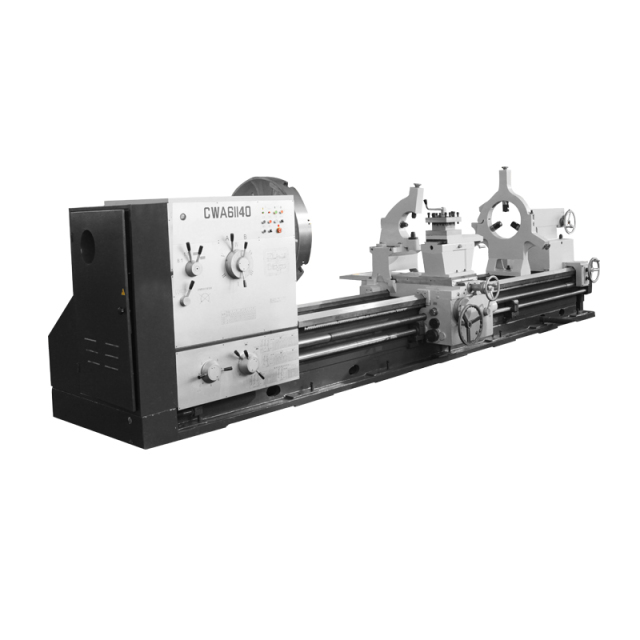

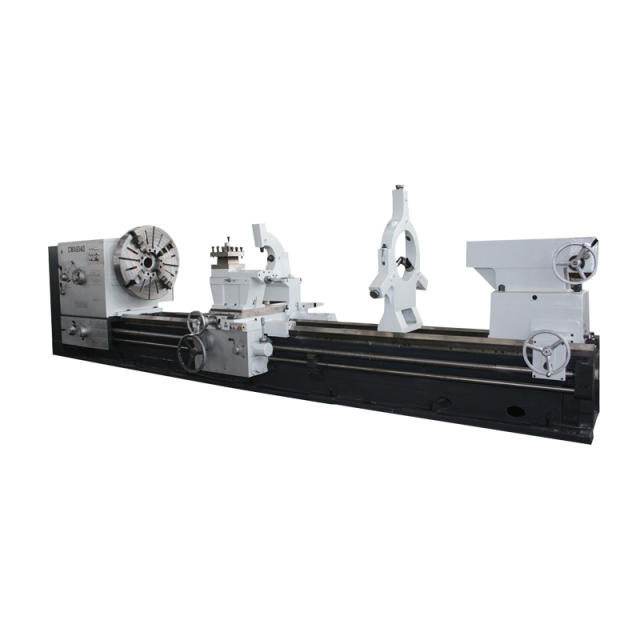

Bed width 780mm, max. weight of workpiece 8t.
The spindle has a three-support structure, and all three supports of the spindle adopt P5 grade precision bearings.
There is a safety mechanism in the carriage, which can prevent the lathe from being damaged due to overload.
The compound rest can turn short cones automatically, and the composite motion of longitudinal feed and compound rest feed can turn long cones automatically, and the bed guideway is surface quenched to improve the life of the guideway.
|
Specifications |
CWA61100 |
CWA61125 |
CWA61140 |
CWA61160 |
|
Max. swing over bed |
1000mm |
1250mm |
1400mm |
1600mm |
|
Max. swing over cross slide |
620mm |
870mm |
1000mm |
1200mm |
|
Center distance |
1.5m 2m 3m 4m 5m 6m 8m 10m 12m |
|||
|
Width of bed |
780mm |
|||
|
Max. weight of workpiece |
8t |
|||
|
Spindle bore |
130mm |
|||
|
Spindle taper |
Metric #140 |
|||
|
Spindle speed |
3.15-315r/min, 2.5-250r/mm Forward 21 kinds, Reverse 12 kinds |
|||
|
Metric thread range |
1-120mm (44 kinds) |
|||
|
Inch thread range |
1/4-24TPI (31 kinds) |
|||
|
Moudle thread range |
0.5-60MP (45 kinds) |
|||
|
Diametral thread range |
1/2-56DP (38 kinds) |
|||
|
Longitudinal feed range |
0.1-12mm (56 kinds) |
|||
|
Cross feed range |
0.05-6mm (56 kinds) |
|||
|
Rapid feed: Longitudinal/Cross |
3.4/1.7m/min |
|||
|
Size of tool shank |
45x45mm |
|||
|
Cross slide travel |
650mm |
|||
|
Compound rest travel |
280mm |
|||
|
Sleeve diameter |
160mm |
|||
|
Sleeve taper |
Metric #80 or MT6 |
|||
|
Sleeve travel |
300mm |
|||
|
Main motor |
22kW |
|||
|
Coolant motor |
0.15kW |
|||
|
Rapid feed motor |
1.5kW |
|||
|
CWA61125 |
1500mm |
11400kg |
4600x1900x2400mm |
|
|
2000mm |
12200kg |
5100x1900x2400mm |
||
|
3000mm |
13000kg |
6100x1900x2400mm |
||
|
4000mm |
13800kg |
7100x1900x2400mm |
||
|
5000mm |
14600kg |
8100x1900x2400mm |
||
|
6000mm |
15400kg |
9100x1900x2400mm |
||
|
8000mm |
17000kg |
11100x1900x2400mm |
||
|
10000mm |
18600kg |
13100x1900x2400mm |
||
|
12000mm |
20200kg |
15100x1900x2400mm |
||
