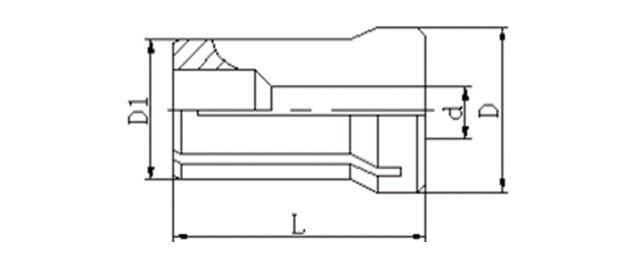

Type
|
D
|
D1
|
L
|
d |
|
|
mm |
in |
||||
|
DA100 |
19.5 |
16.5 |
36.5 |
2~12.5 |
1/16~1/2 |
|
DA180 |
26.045 |
22.08 |
41.7 |
2~18 |
1/16~45/64 |
|
DA200 |
13.6 |
11.43 |
30.4 |
1~8 |
3/64~5/16 |
|
DA300 |
9.5 |
7.62 |
25.4 |
1~6 |
1/32~15/64 |
|
DA100 |
DA180 |
DA200 |
DA300 |
||
|
Size(in) |
Size(in) |
Size(in) |
Size(in) |
Size(in) |
Size(in) |
|
. |
25/64" |
3/64" |
29/64" |
3/64" |
3/64" |
|
1/16" |
13/32" |
1/16” |
15/32" |
1/16" |
1/16" |
|
5/64" |
27/64" |
5/64" |
31/64" |
5/64" |
5/64" |
|
3/32" |
7/16" |
3/32" |
1/2" |
3/32" |
3/32" |
|
7/64" |
29/64" |
7/64" |
33/64" |
7/64" |
7/64" |
|
1/8" |
15/32" |
1/8" |
17/32" |
1/8" |
1/8" |
|
9/64" |
31/64" |
9/64" |
35/64" |
9/64" |
9/64" |
|
5/32" |
1/2” |
5/32" |
9/16" |
5/32" |
5/32" |
|
11/64" |
33/64" |
11/64" |
37/64" |
11/64" |
11/64" |
|
3/16" |
17/32" |
3/16" |
19/32" |
3/16" |
3/16" |
|
13/64" |
35/64" |
13/64" |
39/64" |
13/64" |
13/64" |
|
7/32" |
9/16" |
7/32" |
5/8" |
7/32" |
7/32" |
|
15/64" |
|
15/64" |
41/64" |
15/64" |
15/64" |
|
1/4" |
|
1/4" |
21/32" |
1/4" |
1/4" |
|
17/64" |
|
17/64" |
43/64" |
17/64" |
|
|
9/32" |
|
9/32" |
11/16" |
9/32" |
|
|
19/64" |
|
19/64" |
45/64" |
19/64" |
|
|
5/16" |
|
5/16" |
23/64" |
5/16" |
|
|
21/64" |
|
21/64" |
47/64" |
21/64" |
|
|
11/32" |
|
11/32" |
3/4" |
11/32" |
|
|
23/64" |
|
23/64" |
|
23/64" |
|
|
3/8" |
|
3/8" |
|
3/8" |
|
|
|
|
25/64" |
|
|
|
|
|
|
13/32" |
|
|
|
|
|
|
27/64" |
|
|
|
|
|
|
7/16" |
|
|
|
|

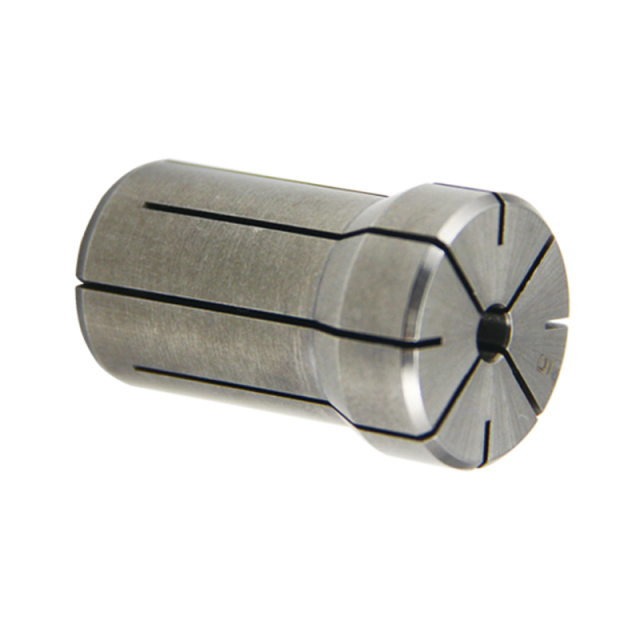

DA Collet Sets |
|
RUN OUT:0.0004"T.I.R. |
|
Precision ground&hand inspected |
|
Clamping range:1/64" |
|
Self-release for rapid,easy opration |
|
Metric sizes in stock |
|
Type
|
Pieces
|
ID Sizes
|
|
Type
|
Pieces
|
ID Sizes.
|
|
DA100 Sets
|
8
|
1/8"-9/16" by 16ths
|
DA200 Sets
|
9
|
1/8"-3/8" by 32ths
|
|
|
15
|
1/8"-9/16" by 32ths
|
17
|
1/8"-3/8" by 64ths
|
|||
|
21
|
1/4"-9/16" by 64ths
|
21
|
1/16"-3/8" by 64ths
|
|||
|
29
|
1/8"-9/16 by 64ths
|
DA300 Sets
|
7
|
1/16"-1/4" by 32ths
|
||
|
33
|
1/16"-9/16 by 64ths
|
14
|
3/64"-1/4" by 64ths
|
|||
|
DA180 Sets
|
9 |
1/4"-3/4" by 16ths |
|
|||
|
17 |
1/4"-3/4" by 32ths |
|||||
|
21 |
1/8"-3/4" by 32ths |
|||||
|
33 |
1/4"-3/4 by 64ths |
|||||
|
41 |
1/8"-3/4 by 64ths |
|||||
