8 station ATC.
Slant slide way.
Specifications

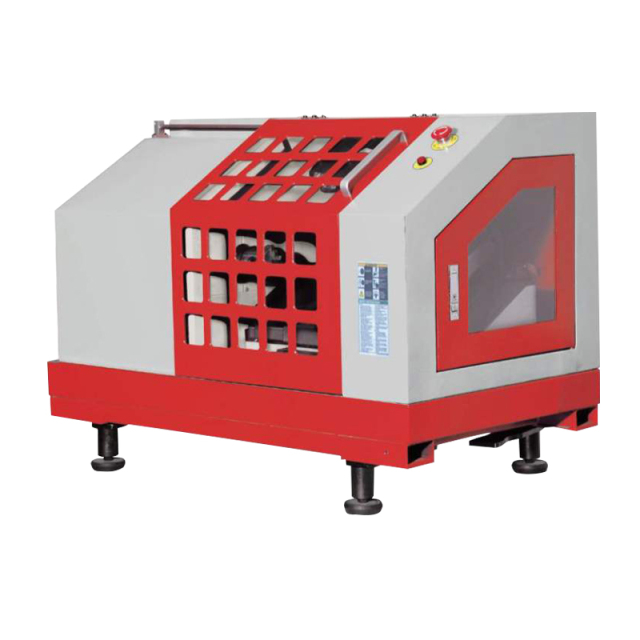

De4 (iKC4)/De4-pro (iKC4-pro)
Work area
Turning diameter over bed
200mm
Travel cross slide
90mm
Center width
280mm
Spindle
Chuck diameter
100mm
Spindle speed
100-3000r/min
Spindle through hole
20mm
Spindle mount
MT3
Spindle motor power
1000W
Feed hybrid
X travel
Z travel
175mm
The max. moving speed
3000mm/min
Power of motor
3Nm
Tool post
Tool position
8
Tool dimension
Φ8mm
8x8mm
Tailstock
Tailstock taper
MT1
Tailstock sleeve diameter
22mm
Travel of tailstock
30mm
Accuracy
Positioning accuracy
±0.010mm
Repeatability accuracy
±0.005mm
Power
230/380V
Others
N.W./G.W.
210/250kg
Overall dimension
1070x690x760mm
Packing size
1260x890x1020mm
Standard Accessories
Optional Accessories
Handwheel
Tailstock chuck Φ10mm + MT1 (for De4)
Cutter 11pcs set
Cutter set (tips replaceable) Tin coated 7pcs 8x8mm
Rolling center MT1
Stand dimension 1000x650x800mm
Tailstock MT1
Movable table
