16mm (5/8'') max. chuck capacity.430mm swing.16 spindle speeds.Optional chuck guard and micro switch for CE requirement.
Model

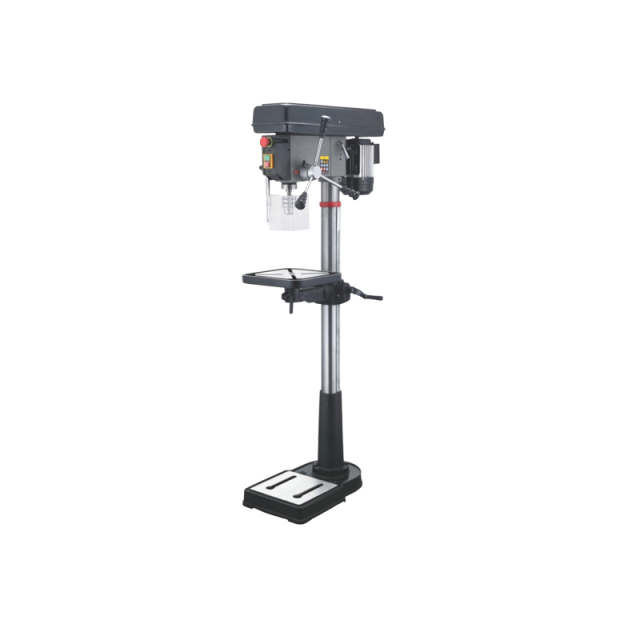

DP43016F-PRO
Drill capacity
25mm
Chuck capacity
16mm
Swing
430mm
Distance from spindle to column
215mm
Spindle taper
MT2
Speed (50Hz)
16 (160-3000rpm)
Spindle travel
80mm
Column diameter
Rack & pinion
Yes
Max. distance from spindle to table
685mm
Max. distance from spindle to base
1175mm
Base size
545x330mm
Base material
Cast iron
Table size
315*315mm
Table tilt
Yes -45/+45°
Table material
Motor (w)/S1
1100W
Height
1635mm
N.W./G.W.
89/94kg
Packing size
1410x540x250mm
Quantity for 20GP
144pcs
Standard Accessories
Optional Accessories
Drill chuck
Copper motor
Wrench set
Chuck guard
Aluminium motor
Emergency stop
Keyless drill chuck
Vice
