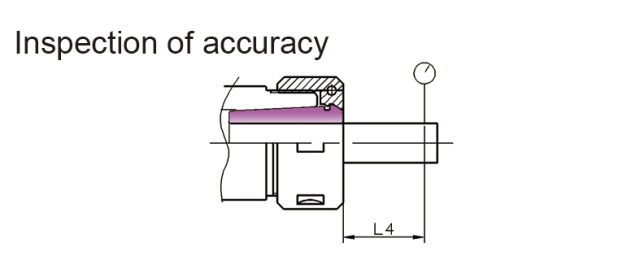

Inspection of accuracy
|
d |
L4 |
Run out |
d |
L4 |
Run out |
||
|
D |
D1 |
D |
D1 |
||||
|
1.0~1.6 |
6 |
0.01 |
0.015 |
<10.0~18.0 |
40 |
0.015 |
0.02 |
|
<1.6~3.0 |
10 |
<18.0~24.0 |
50 |
||||
|
<3.0~7.0 |
16 |
<24.0~30.0 |
60 |
||||
|
<7.0~10.0 |
25 |
<30.0~50.0 |
80 |
0.02 |
0.03 |
||
|

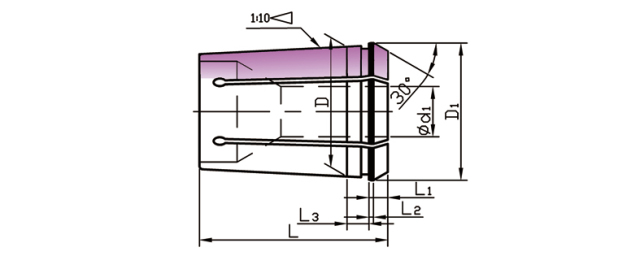

Type |
D |
D1 |
d |
L |
L1 |
L2 |
L3 |
|
EOC6A(B) |
10 |
11.5 |
1-6 |
21 |
3.5 |
0.5 |
4 |
|
EOC8A(B) |
12.65 |
14.5 |
1-8 |
26 |
4 |
0.8 |
4.5 |
|
EOC10A(B) |
15.15 |
17.2 |
1-10 |
30 |
4.5 |
0.8 |
4.5 |
|
EOC12A(B) |
17.75 |
19.8 |
1-12 |
34 |
5 |
1.1 |
4.5 |
|
EOC16A(B) |
22.65 |
25.5 |
2-16 |
40 |
5.5 |
1.2 |
5.5 |
|
EOC20A(B) |
27.4 |
29.8 |
2-20 |
45 |
6 |
1.35 |
6 |
|
EOC25A(B) |
32.9 |
35.05 |
2-25 |
52 |
6 |
1.4 |
6 |
|
EOC32A(B) |
41.3 |
43.7 |
4-32 |
60 |
6 |
1.45 |
7.00 |
|
EOC40A(B) |
49.7 |
52.2 |
6-40 |
68 |
6 |
1.45 |
8.00 |
|
EOC50A(B) |
61.1 |
63.8 |
8-50 |
80 |
7 |
1.55 |
9.00 |
|
Type |
d(mm) |
d(inch) |
|
OZ25 |
3,4,5,6,7,8,9,10,11,12,13,14,15,16,18,20,25 |
1/8", 3/16", 1/4", 5/16", 3/8", 7/16", 1/2",9/16",5/8", 11/16", 3/4", 13/16", 7/8", 15/16", 1" |
|
OZ32 |
6,8,10,12,16,20,25,32 |
1/4", 5/16", 3/8", 7/16", 1/2", 9/16",5/8", 11/16", 3/4", 13/16", 7/8", 15/16", 1", 11/8", 11/4" |
