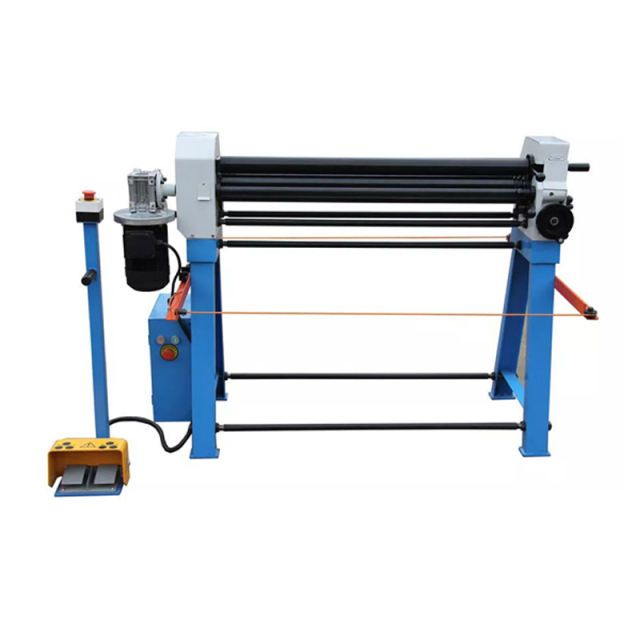

Asymmetrical roll bending machine with 3 rolls high strength steel rolls.Fixed top roller, adjustable lower and rear rollers.Standard series wire core groove.Top roll swing out across cam lock.Supplied with conical bending feature.
Specifications
ESR-1020X2
Max. rolling thickness
2mm
Max. rolling width
1020mm
Dia. of roller
60mm
Motor power
0.75kW/3Ph, 1.1kW/1Ph
Packing size
174x60x126cm
N.W./G.W.
260/325kg
Standard Accessories
Standard rollers
