Specifications

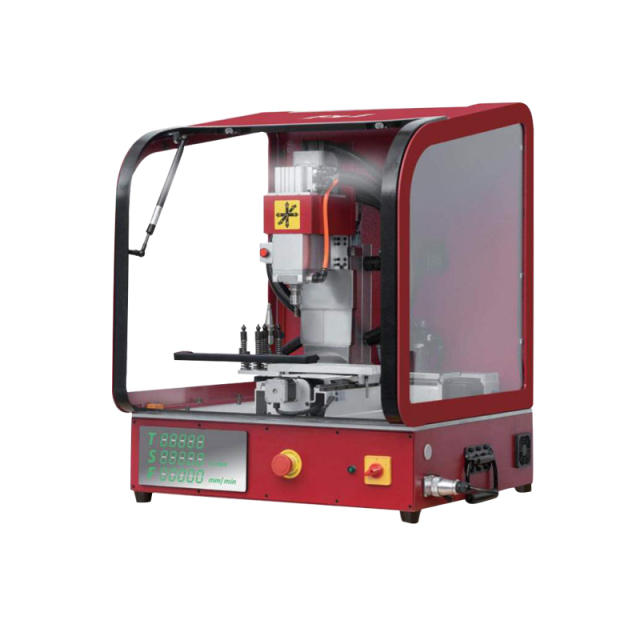

Fa2/Fa2-Ultra
Table
Table size
230x100mm
T slot (No./width/pitch)
7pcs/6/14mm
Max. load
5kg
Travel
X travel
285mm
Y travel
125mm
Z travel
130mm
Spindle nose to table
55-185mm
Spindle
Spindle taper
ISO15/ER16
Spindle motor
250w
Spindle speed
5000r/min
Feed
Rapid feed
2m/min
Power of X/Z
0.9Nm
Power of Y
0.4Nm
Tool changer
Tool number
2
Max. tool diameter
10mm
Max. tool length
0.1kg
Max. tool weight
60mm
Time of tool change
15s
Accuracy
Positioning accuracy
0.02mm
Repeatability accuracy
0.01mm
Others
Pneumatic supply
0.6MPa
Power
800W
N.W. (Fa2/Fa2-Ultra)
60/165kg
Overall dimension (Fa2/Fa2-Ultra)
600x600x800mm/1600x900x1400mm
Packing size (Fa2/Fa2-Ultra)
1080x770x960mm/1760x1000x1600mm
Standard Accessories for Fa2:
ISO15 tool holder 2pcs
ER16 collet set 4pcs
Milling cutter set 4pcs
50mm vice
Clamping kit set
Physical machine
Handwheel
USB disk
Standard Accessories well-organized
Fa2-UItra:
Physical machine handwheel
Virtual machine handwheel
Vacuum cleaner
