Specifications |
H32I |
TCK6340 |

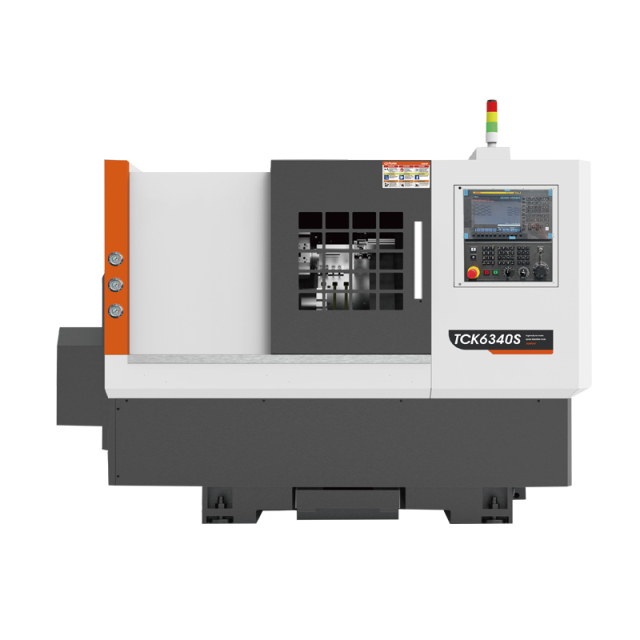

TCK6340S |
|
Max. swing over bed |
320mm |
400mm |
400mm |
|
Max. swing over cross slide |
70mm |
140mm |
140mm |
|
Max. turning length |
185mm |
190mm (gang tool) |
390mm (gang tool) |
|
Max. bar capacity |
39mm |
39/44mm |
39/44mm |
|
Max. processing diameter (plate) |
320mm |
400mm |
400mm (gang tool) |
|
Spindle nose |
A2-5 GB59001 |
A2-5 GB59001 |
A2-5 GB59001 |
|
spindle bore |
48mm |
49/56mm |
49/56mm |
|
Spindle speed |
50-3500r/min |
50-4000r/min |
50-4000r/min |
|
Spindle shift mode |
Stepless |
Stepless |
Stepless |
|
Spindle motor power |
3.7kW |
5.5kW |
5.5kW |
|
Chuck type |
Hydraulic collect/chuck |
Hydraulic collect/chuck |
Hydraulic collect/chuck |
|
Chuck size |
6" |
6/8" |
6/8" |
|
X/Z-axis rapid traverse |
18/18m/min |
18/18m/min |
12/12m/min |
|
X/Z-axis servo motor torque |
4/4N.m |
6/6N.m |
6/6N.m |
|
X/Z-axis travel |
280/220mm (collect) |
400/200mm (chuck) |
400/400mm (chuck) |
|
Guide way |
Linear guide |
Linear guide |
Linear guide |
|
Tool post |
Gang type |
Gang type |
Gang type (turret optional) |
|
Tool shank size (turning/boring) |
20x20/Φ25mm |
20x20/Φ25mm |
20x20/Φ25mm |
|
Total rated power |
6kW |
10kW |
12kW |
|
Total rated current |
13A |
21A |
26A |
|
Machine weight |
1000kg |
2200kg |
2400kg |
|
Overall size |
1620x1420x1700mm |
2200x1530x1780mm |
2400x1530x1780mm |
