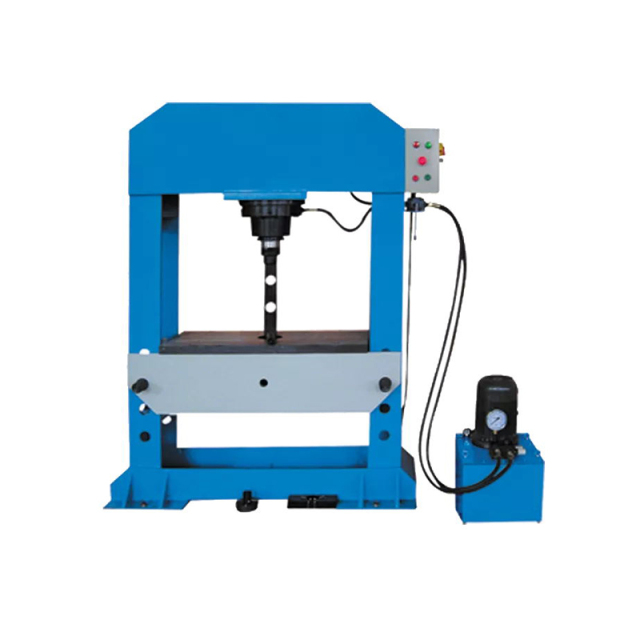

The hydraulic press has various functions that can conduct assembling, dismantling, bending, punching, etc. for machine parts.
The hydraulic press uses Italian CNK and CBZ oil pumps, which can save more than 60% energy when compared to the traditional hydraulic press. It features high efficiency, small size, high pressure, simple structure and it light weight.
The working table can be moved up and down which greatly lengthen the running height of the machine and facilitates its operation.
|
Specifications |
HP-100 |
HP-150 |
HP-200 |
HP-250 |
|
Capacity |
1000kN |
1500kN |
2000kN |
2500kN |
|
Pressure |
30MPa |
30MPa |
30MPa |
30MPa |
|
Piston travel |
250mm |
250mm |
300mm |
300mm |
|
Table travel |
405mm |
405mm |
405mm |
405mm |
|
Table size |
440x980mm |
440x980mm |
500x980mm |
500x980mm |
|
Dimension |
1730x730x2200mm |
1730x730x2200mm |
1800x800x2200mm |
1800x800x2250mm |
|
730x630x960mm |
730x630x960mm |
830x730x1260mm |
830x730x1260mm |
|
|
N.W. |
1220kg |
1350kg |
2200kg |
2400kg |
