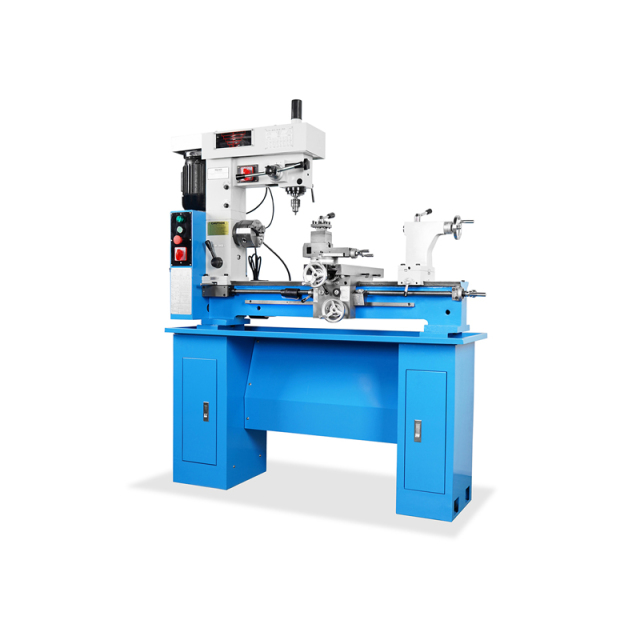

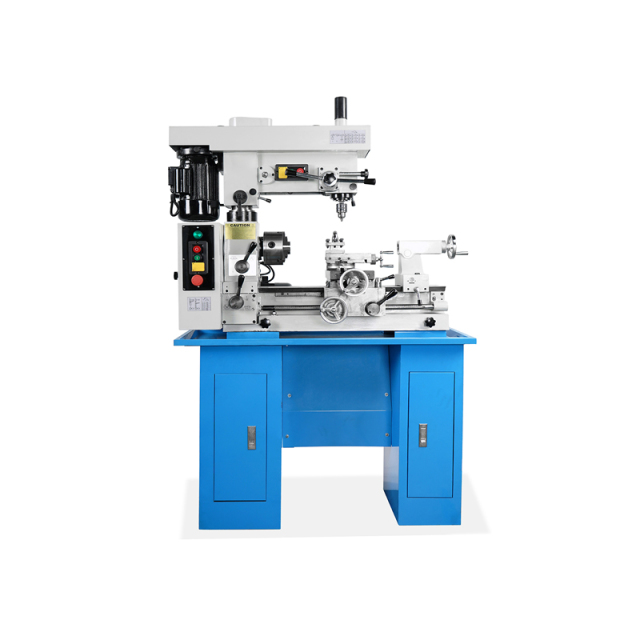

A kind of combination machines with turning, milling, drilling and threading.
Metric or imperial thread cutting.
Suitable for processing metal, wood and other materials.
Excellent advantage of various functions, compact and economical.
Widely used in job-shops, car-shops technical school, factories and family for machine parts repairing and making, education training, household utensils' making, etc.
Specifications |
HQ500 |
HQ800 |
Swing over bed |
420mm |
|
Distance between centers |
500mm |
800mm |
Max. longitudinal travel |
400mm |
700mm |
Max. cross travel |
195mm |
|
Spindle taper |
MT4 |
|
Spindle bore |
28mm |
|
Step of spindle speed |
7 |
|
Range of spindle speed |
160-1360rpm |
|
Barrel travel |
70mm |
|
Barrel taper |
MT3 |
|
Metric thread range |
0.2-6mm |
|
Inch thread range |
4-120TPI |
|
Longitudinal range of automatic feeding |
0.05-0.35mm/0.002-0.014" |
|
Cross range of automatic feeding |
0.05-0.35mm/0.002-0.014" |
|
Max. drilling capacity |
22mm |
|
Worktable size (LxW) |
475x160mm |
|
Max. end mill capacity |
28mm |
|
Max. face mill capacity |
80mm |
|
Distance between spindle center and column |
285mm |
|
Distance between spindle and worktable |
306mm |
|
Headstock travel of up and down |
110mm |
|
Spindle taper |
MT3 |
|
Step of spindle speed |
16 |
|
Range of spindle speed |
120-3000rpm |
|
Swivel degree of headstock |
±360° |
|
Motor power |
550W |
|
Packing size |
1130x580x1100mm |
1430x580x1100mm |
N.W./G.W. |
245/280kg |
275/325kg |
Standard Accessories |
Optional Accessories |
3 jaw chuck |
4 jaw chuck |
Change gears |
Back plate |
Tool post wrench |
Face plate |
Wedge |
Steady rest |
Allen wrench |
Follow rest |
Drawing bar |
Reversible thread tapping tool |
|
Lathe tool |
|
Drill chuck |
|
Mill cutter holder |
|
Leadscrew guard |
|
Drill chuck guard |
|
Toolpost guard |
|
Chuck guard |
|
Stand |
