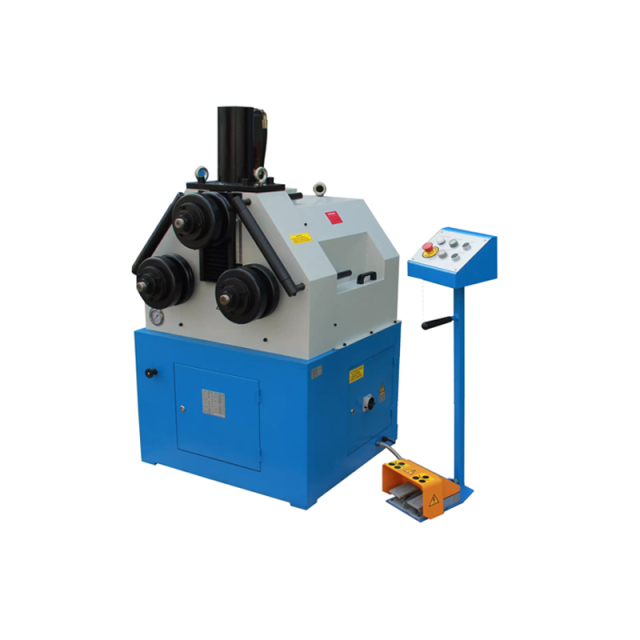

Steel-welded construction frame.
With hydraulic motor.
Mobile control panel.
Top roll hydraulic moveable.
One standard combination roller.
Horizontal and vertical operation.
|
Specifications |
HRBM65 |
|
|
Dia. of roller |
65mm |
|
|
Power |
2.25kW |
|
|
Spindle speed |
9.3rpm |
|
|
N.W./G.W. |
720/920kg |
|
|
Packing size |
1250x1150x1800mm |
|
|
Capacity |
Size |
Min dia. |
 |
80x25mm |
600mm |
|
40x10mm |
500mm |
|
 |
120x25mm |
600mm |
|
50x10mm |
400mm |
|
 |
50x50mm |
600mm |
|
20x20mm |
400mm |
|
 |
80x40x7mm |
500mm |
|
40x40x5mm |
400mm |
|
 |
80x40x7mm |
400mm |
|
40x40x5mm |
360mm |
|
 |
100x50x6mm |
600mm |
|
50x40x5mm |
500mm |
|
 |
100x50x6mm |
600mm |
|
50x40x5mm |
500mm |
|
 |
70x6mm |
500mm |
|
40x5mm |
400mm |
|
 |
70x6mm |
600mm |
|
40x5mm |
500mm |
|
 |
Φ50mm |
600mm |
|
Φ20mm |
400mm |
|
 |
70x70x3mm |
900mm |
|
30x30x3mm |
500mm |
|
 |
80x40x3mm |
800mm |
|
50x30x2mm |
500mm |
|
|
·All above processing capacities can be finished by one set of standard combination roller |
||
|
Special Roller |
||
|
Specifications |
HRBM65 |
|
|
Capacity |
Size |
Min dia. |
 |
3-1/2"x2" |
900mm |
|
2-1/8"x2" |
500mm |
|
|
Φ100x2mm |
1000mm |
|
|
Φ60x2mm |
500mm |
|
