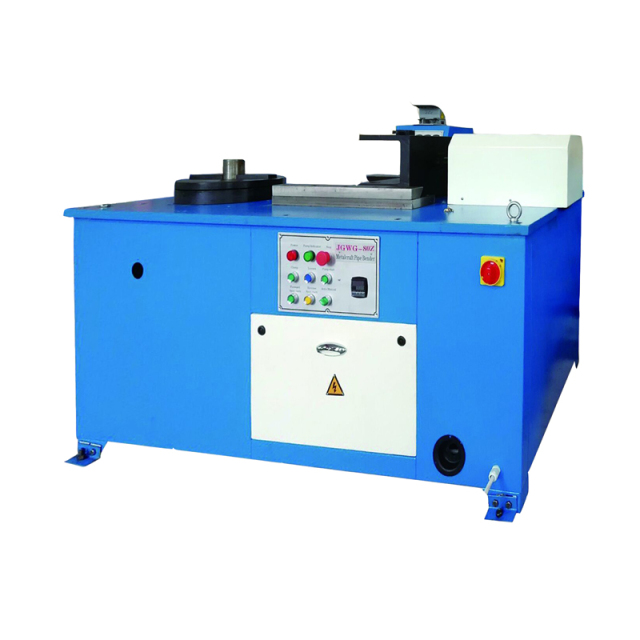

The JGWG-80Z metal pipe bending machine is mechanically driven with semi-automatic hydraulic adjustment for the clamping of workpieces and the bending of curved shapes. Machine in JGWG series can bend such workpiece as low carbon and stainless round tubes, square tubes, steel angles, I-shaped steel stripes and round steel bars to achieve your desired shapes. Being specialized equipment for construction and beautification works today. The JGWG series are widely applied in the field of building construction, decoration industry, furniture building and garden construction.
The equipment feature "one touch" operation on single workpiece and data-program controlled mass processing. Being easy to operate, reasonable in composition and low power consumption with high work efficiency, the equipment is ideal for bending metal pipes.
|
Specifications |
JGWG-80Z |
||
|
Dimensions of workpiece |
Round pipe |
Max. |
Φ80mm |
|
Min. |
Φ40mm |
||
|
Stainless steel pipe |
Max. |
Φ50.8mm |
|
|
Min. |
Φ32.2mm |
||
|
Square pipe |
Max. |
80x80mm |
|
|
Min. |
40x40mm |
||
|
Bending angle |
180° |
||
|
Rate of main shaft rotation |
2r/min |
||
|
Main motor power |
5.5kW |
||
|
1400r/min |
|||
|
380V |
|||
|
50Hz |
|||
|
Hydraulic motor power |
1.5kW |
||
|
1400r/min |
|||
|
380V |
|||
|
50Hz |
|||
|
Packing size |
1580x880x1200mm |
||
|
N.W./G.W. |
950/1050kg |
||
|
Standard moulds |
Φ48.3mm, Φ76mm |
||
