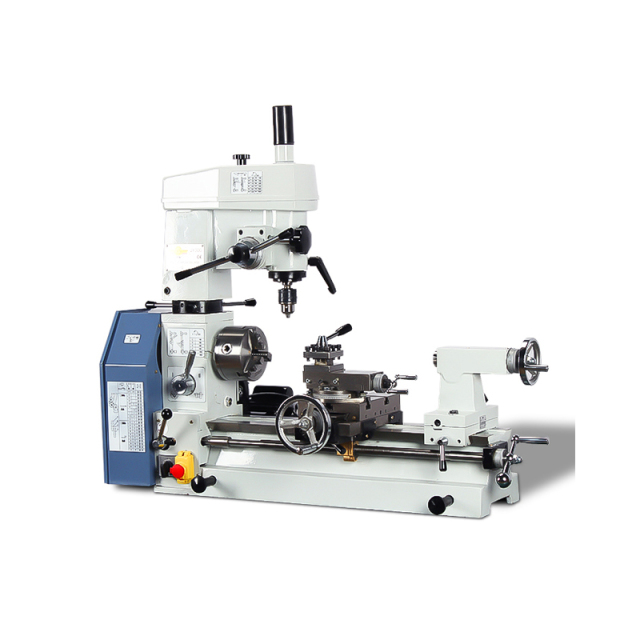

CE standard, safe, silent, takes up little space, turning, drilling and milling machine, drilling and milling head can be lifted and lowered, can be rotated 360°, suitable for home use, maintenance workshop, laboratory use of multifunctional tool machine.
|
Specifications |
JY300 |
|
Swing over bed |
300mm |
|
Distance between centers |
500mm |
|
Swing over cross slide |
140mm |
|
Spindle bore |
26mm |
|
Spindle taper |
MT4 |
|
Cross slide travel |
200mm |
|
Top slide travel |
80mm |
|
Metric thread |
14 kinds 0.5-3mm |
|
Inch thread |
20 kinds 11-40TPI |
|
Longitudinal feed |
0.05-0.5mm/r |
|
Cross feed |
0.05-0.5mm/r |
|
Tailstock quill travel |
50mm |
|
Tailstock quill taper |
MT3 |
|
Spindle speed step |
6 |
|
Spindle speed |
160-1600rpm |
|
Motor |
750W |
|
Spindle taper |
MT3 |
|
Max. drilling capacity |
20mm |
|
Distance from spindle nose to table surface |
240-320mm |
|
Distance from spindle center to column surface |
175mm |
|
Milling head swivel angle around column |
360° |
|
Headstock travel |
80mm |
|
Spindle travel |
80mm |
|
Table cross travel |
200mm |
|
Table size |
200x150mm |
|
T-slot width |
12mm |
|
Spindle speed |
12 steps 125-1600rpm |
|
N.W./G.W. |
175/215kg |
|
Packing size |
1130x620x1095mm |
