Home > All Collections > Machines > Lathe > Horizontal Lathe > JYP300VF Combination Lathe
  • JYP300VF Combination Lathe,SENMO Industrial
  • JYP300VF Combination Lathe,SENMO Industrial

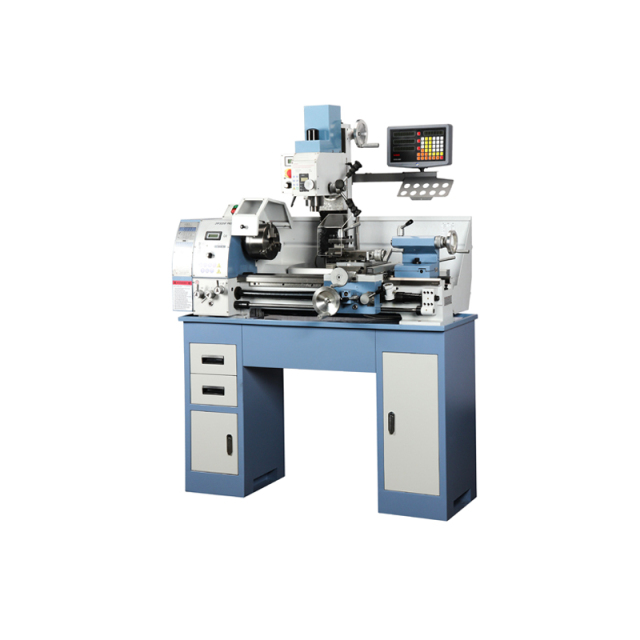

JYP300VF Combination Lathe

Most economical, widely useful combination machine.
V-way bed is precision ground.
Spindle is supported by precision tapered bearing.
Lathe headstock is constantly oiled during operating.
Power longitudinal feed allows thread cutting.
Adjustable gibs for slideways.
Equipped with leadscrew cover and work table.
Tailstock can be off set for turning tapers.

Request a Quote
Add to Cart View Quote List
  • JYP300VF Combination Lathe,SENMO Industrial
  • Specifications
  • Accessories

Specifications

JYP300VF

Turning

Swing over bed

300mm

Distance between centers

700mm

Swing over cross slide

175mm

Spindle bore

38mm

Spindle taper

MT5

Cross slide travel

140mm

Top slide travel

80mm

Metric threads range

18 kinds (0.2-3.5mm)

Inch threads range

21 kinds (8-56TPI)

Range of longitudinal feeds

0.07-0.65mm/r

Tailstock quill travel

94mm

Tailstock quill taper

MT3

Number of spindle speed

Variable

Spindle speed

30-3000rpm

Motor

1500W

Milling
&
Drilling

Spindle taper

MT2

Max. drilling capacity

20mm

Max. end milling capacity

16mm

Max. face mill capacity

63mm

Spindle travel

50mm

T-slot size

10mm

Range of spindle speed

50-2250rpm

Motor

750W

Shipment data

N.W./G.W.

295/335kg

Packing size (LxWxH)

1400x750x1010mm

Standard Accessories

Optional Accessories

3 jaw chuck

4 jaw chuck

Speed display

Back plate

Splash guard

Face plate

Change gears set

Steady rest

Chip tray

Follow rest

Chuck guard

Collet chuck

Dead center

Turning tools

Draw bar

Coolant system

Morse taper

Working lamp

Tool box with tools

Machine stand



Live center



Quick change tool post



3 axis DRO



Chuck cover



Tool post cover



Lead screw cover
