The new generation of globally popular, compact, high productivity horizontal turning center.

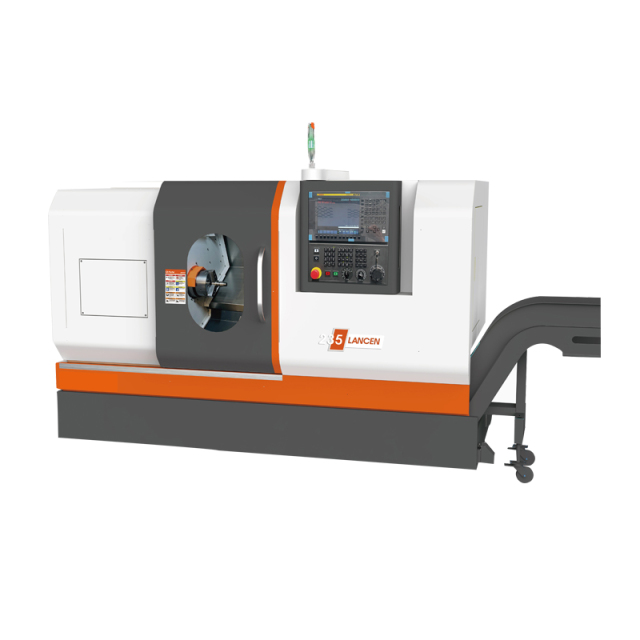

The LANCEN series is a new generation of compact horizontal turning center with the more rigidity and stable performance. The strong torque spindle can meet the different production needs from high-precision machining to mass production.
High rigidity bed, high performance spindle, P4 grade spindle bearings, integrated turret structure.
The LANCEN series machine bed has been widened to increase rigidity and stability.
The power and torque of the spindle motor have been significantly increased, effectively improving the machining accuracy and efficiency.
12-station heavy-duty servo turret and 180mm diameter high-precision curved gear clutch ensure high rigidity, strong cutting force, fine surface finish, and longer tool life.
|
Specifications |
LANCEN235 |
LANCEN235M |
|
Max. swing over bed |
500mm |
500mm |
|
Max. swing over cross slide |
260mm |
260mm |
|
Max. turning length |
490mm |
410mm |
|
Max. bar capacity |
50mm |
50mm |
|
Max. processing diameter (plate) |
320mm |
240mm |
|
Spindle nose |
A2-6 GB59001 |
A2-6 GB59001 |
|
Spindle through-hole |
65mm |
65mm |
|
Spindle speed |
3000r/min |
3000r/min |
|
Spindle shift mode |
Stepless |
Stepless |
|
Spindle motor power |
11/15kW |
11/15kW |
|
Chuck type |
Hydraulic |
Hydraulic |
|
Chuck size |
8/10" |
8/10" |
|
X/Z-axis rapid traverse |
30/36m/min |
30/36m/min |
|
X/Z-axis motor torque |
12/12N.m |
12/12N.m |
|
X/Z-axis travel |
200/530mm |
170/500mm |
|
Guide way |
Linear guide |
Linear guide |
|
Turret |
12-station horizontal |
12-station horizontal |
|
Tool shank size (turning/boring) |
25x25/Φ40mm |
20x20/Φ40mm |
|
Tailstock |
Hydraulic |
Hydraulic |
|
Tailstock quill diameter |
65mm |
65mm |
|
Tailstock quill travel |
80mm |
80mm |
|
Tailstock taper |
MT4 |
MT4 |
|
Rated total power |
20kW |
23kW |
|
Machine weight |
2600kg |
2700kg |
|
Overall size |
3200x1750x1750mm |
3400x1800x1800mm |
