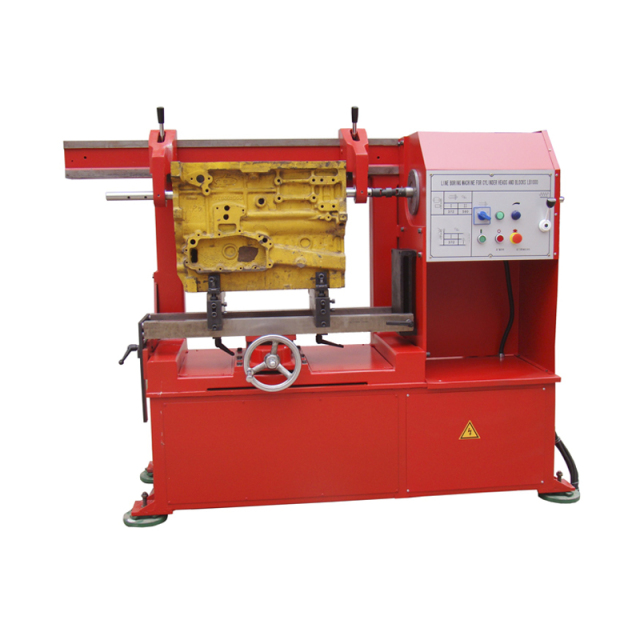

This machine was specially designed for boring Middle & Small engine blocks, crankshaft bush and camshaft bush, it also can be used for con rod bush with special fixture. The boring carriage adopts guideway moving, center of main shaft already adjusted in advance, vertical column go up and down, make the work piece to find positive and accurate. Good rigidity, spindle feeding stepless, boring with high accuracy. It is purposed to used in automotive service and repair filed.
|
Specifications |
LB1000 |
|
Boring diameter |
24-110mm |
|
Distance from spindle center to table |
450mm |
|
Max. boring length |
1000mm |
|
Spindle stroke |
100mm |
|
Spindle speed |
580,373r/min |
|
Spindle feed speed steps |
Stepless |
|
Main motor power |
0.75/0.55kW |
|
Machine dimensions |
1850x600x1375mm |
|
Packing dimensions |
1980x750x1700mm |
|
Machine weight |
600kg |
