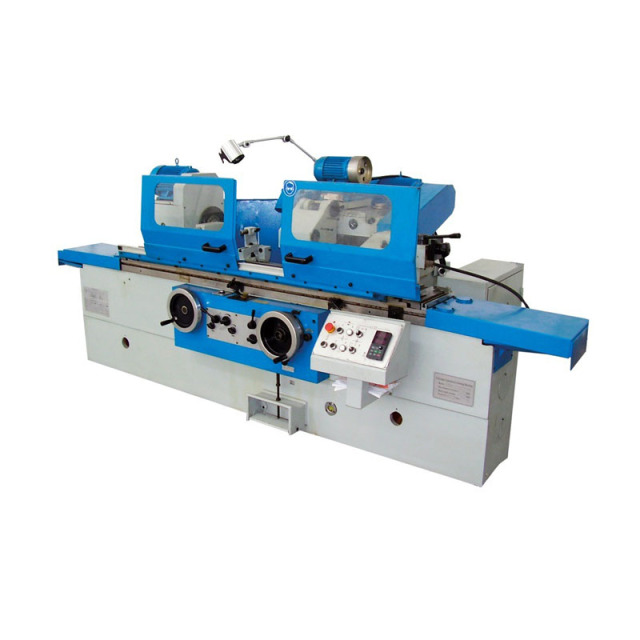

Specifications
M1432BX1000
M1432BX1500
M1432BX2000
M1432BX3000
Grinding length (O.D./I.D.)
1000/125mm
1500/125mm
2000/125mm
3000/125mm
Grinding diameter (O.D./I.D.)
8-320/30-100mm
Center height
180mm
Max. travel of worktable
150kg
Worktable speed
0.1-4m/min
Max. peripheral speed of grinding wheel
35m/s
Max. travel of table
1100mm
1600mm
2100mm
3100mm
Swivel range of worktable
-3-+7°
-3-+6°
-2-+5°
-2-+3°
External wheel size
Φ400x50xΦ203mm
Φ500x50xΦ203mm
Spindle speed of worktable
50Hz: 25-220r/min stepless 60Hz: 30-264r/min stepless
Workhead and tailstock center
MT4
Wheelhead displacement per div. of handwheel coarse/fine
0.01/0.0025mm
Total motor power
9kW
Overall dimensions (LxWxH)
3605/4605/5606/7605x1810x1515mm
Machine weight
3700kg
4300kg
6600kg
8600kg
Working Accuracy
O.D. Roundness
2.5/2.5μm (O.D/I.D)
Uniform of dia. in longitudinal section
8/10μm
Surface roughness
Ra 0.32/0.63μm (O.D/I.D)
Standard Accessories
Optional Accessories
Complete set of electric equipment
Wheel balancing stand
Complete set of coolant equipment
Radius dresser
Wheel peripheral dresser
End-face dresser
Wheel flanges
Center rest close type
Wheel balancing mandrel
Open type steady rest
Leveling wedge
3 Jaw chuck
Int. grinding attachment
