The handle lever handle base screw holes screwed before use, tighten, turn the handle, check whether the guides freedom of movement (slide up and down of the new machine will be feeling a little tight). Electrical power, to open the magnetic switch. Open magnet switch, indicator lights, and show that the magnet is in working condition, with iron bars on the magnet at the bottom, check for suction. Open drill switch, to check electric drill normal operation.
Note: Move magnetic base, do not drag on the ground, to prevent magnetic damage.
Model |

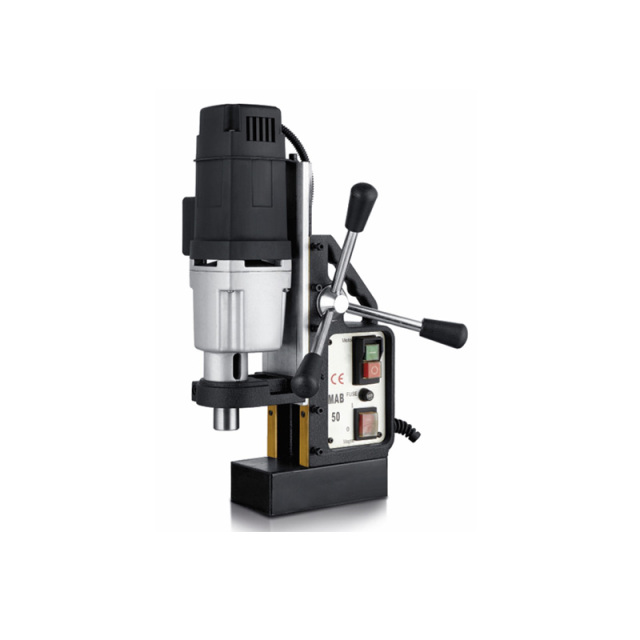

MAB50 |
MAB80 |
Characteristic: Overcurrent torsion protection, Magnetic induction lamp. |
||
Rated voltage |
110V/230V |
110V/230V |
Rated frequency |
50/60Hz |
50/60Hz |
Motor input power |
1150W |
1500W |
Aggregate input power |
1260W |
1620W |
No load speed |
250/450r/min |
210/330/470/740r/min |
Max. drilling diameter |
50mm |
80mm |
Twist drill |
23mm |
32mm |
Max. attraction |
12000N |
18000N |
Max. travel |
150mm |
180mm |
Rated axis taper |
MT2 |
MT3 |
N.W. |
12kg |
25kg |
Packing size |
31x16x44cm |
31x16x44cm |
