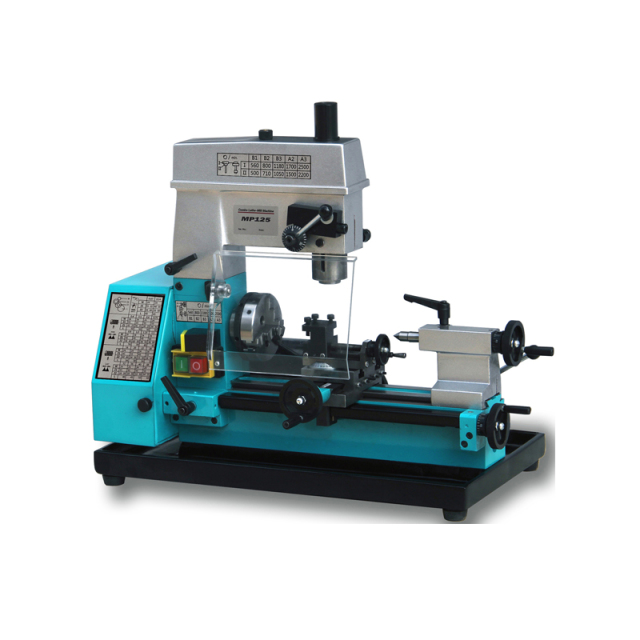

Combined lathe/mill/drill in one for hobby.
Spindle speed for mill/drill up to 2500rpm with high torque.
Spindle for mill/drill feed by manual and micro feed control and the spindle rapid feed with 1mm per scale of handle.
Featured carriage with 2-station tool post which swivels right/left 45°.
Longitudinal auto feed with a range 0.07-0.14mm/r.
Built-in a patent device for changing function from lathe to mill/drill.
Mill/drill head could be lifted 60mm and swivels 360°.
|
Specifications |
MP125 |
|
Swing over bed |
125mm |
|
Swing over cross slide |
90mm |
|
Distance between centers |
180mm |
|
Top slide travel |
35mm |
|
Cross slide travel |
80mm |
|
Max. tool size |
8x8mm |
|
Spindle bore |
9mm |
|
Spindle taper |
MT1 |
|
Spindle speed |
560-2500rpm |
|
Metric thread |
10 kinds 0.25-1.0mm |
|
Inch thread |
21 kinds 22-64TPI |
|
Tailstock quill taper |
MT1 |
|
Tailstock quill travel |
20mm |
|
Main motor |
120W |
|
Drilling capacity |
10mm |
|
End milling capacity |
15mm |
|
Face milling capacity |
25mm |
|
Milling head spindle taper |
MT1 |
|
Milling head spindle travel |
40mm |
|
Milling head spindle speed |
500-2500rpm |
|
Distance from spindle nose to table surface |
120-180mm |
|
Milling head rotation around column |
360° |
|
Table size |
85x60mm |
|
T-slot width |
8mm |
|
N.W./G.W. |
28/30kg |
|
Packing size |
520x300x410mm |
