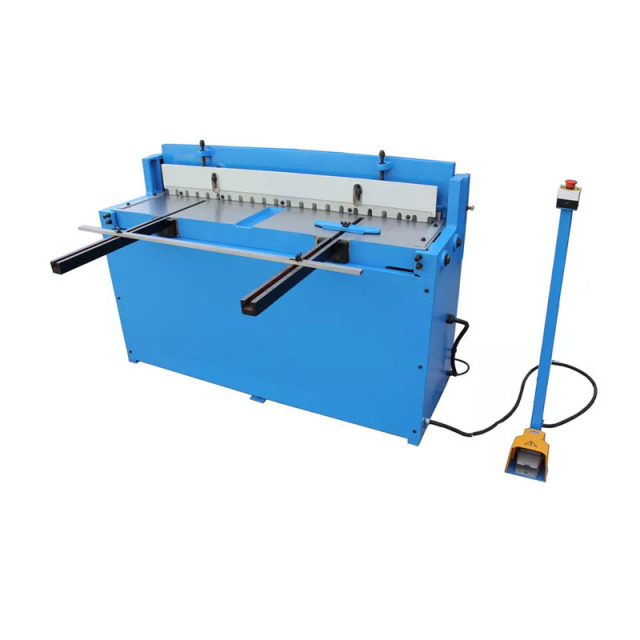

The Pneumatic shearing machine with Mobile 24v foot pedal switch.
Complete pneumatic control system.
Low cutting angle to cut narrow strip without twisting.
Precise bed and beam alignment assures working accuracy.
Front and back gauges is available to give fine adjustment.
Ideal for precision shearing of mild steel up to 1.5mm.
|
Specifications |
PS-1.5X1320 |
|
Max. shearing thickness |
1.5mm |
|
16Ga |
|
|
Max. shearing width |
1320mm |
|
52” |
|
|
Back gauge |
750mm |
|
29-1/2” |
|
|
Front gauge |
535mm |
|
21” |
|
|
No. of stroke (per minute) |
40 |
|
Max. air pressure (Psi) |
85-100 (0.6-0.7MPa) |
|
Air consumption per stroke (approx) |
1.4CFM |
|
N.W./G.W. |
550/610kg |
|
1210/1342lb |
|
|
Packing size |
168x76x115cm |
