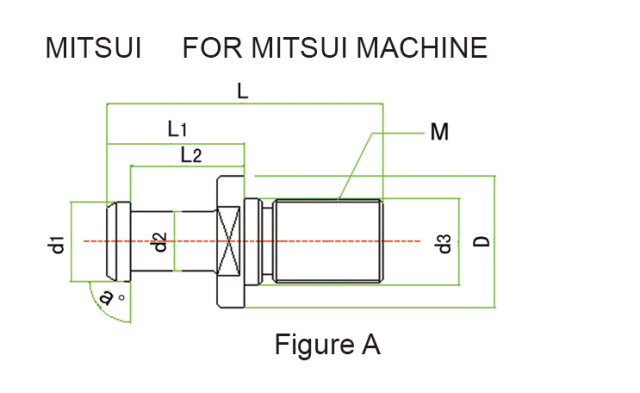

Figure A table
|
Type |
a° |
L |
L1 |
L2 |
D |
d1 |
d2 |
d3 |
M |
|
MITSUI BT40 |
90 |
50 |
25 |
18 |
23 |
15 |
10 |
17 |
M16 |
|
MITSUI BT50 |
90 |
71 |
31 |
23 |
36 |
24 |
18 |
25 |
M24 |

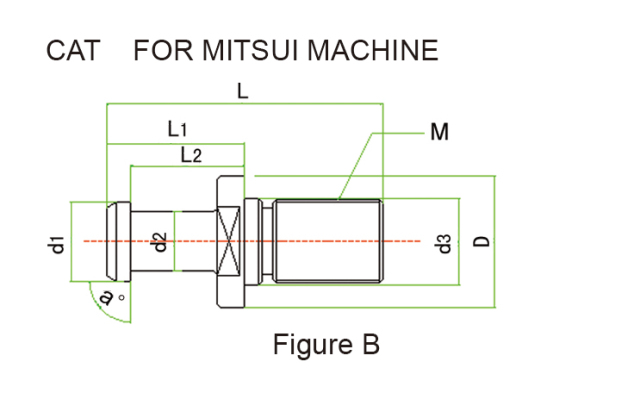

Figure B table
|
Type |
a° |
L |
L1 |
L2 |
D |
d1 |
d2 |
d3 |
M |
|
CAT40 |
45 |
38.1 |
16.2 |
11.2 |
23.8 |
18.8 |
12.4 |
7.1 |
5/8" |
|
CAT50 |
45 |
58.4 |
25.4 |
17.8 |
36 |
28.9 |
20.8 |
11.8 |
1" |

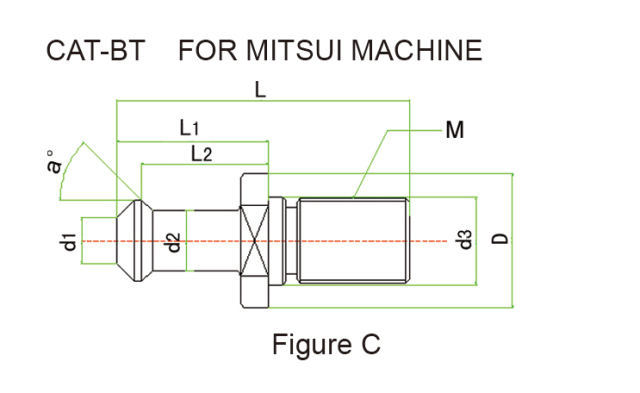

Figure C table
|
Type |
a° |
L |
L1 |
L2 |
D |
d1 |
d2 |
d3 |
M |
|
CAT40x45° |
45 |
57 |
32 |
25 |
23 |
15 |
10 |
|
5/8" |
|
CAT40x60° |
60 |
57 |
32 |
25 |
23 |
15 |
10 |
|
5/8" |
|
CAT40x90° |
90 |
57 |
32 |
25 |
23 |
15 |
10 |
|
5/8" |
|
CAT50x45° |
45 |
78.6 |
45 |
35.2 |
38 |
23 |
17 |
|
1" |
|
CAT50x60° |
60 |
78.6 |
45 |
35.2 |
38 |
23 |
17 |
|
1" |
|
CAT50x90° |
90 |
78.6 |
45 |
35.2 |
38 |
23 |
17 |
|
1" |
|
CAT40x45°M |
45 |
57 |
32 |
25 |
23 |
15 |
10 |
17 |
M16 |
|
CAT40x60°M |
60 |
57 |
32 |
25 |
23 |
15 |
10 |
17 |
M16 |
|
CAT40x90°M |
90 |
57 |
32 |
25 |
23 |
15 |
10 |
17 |
M16 |
