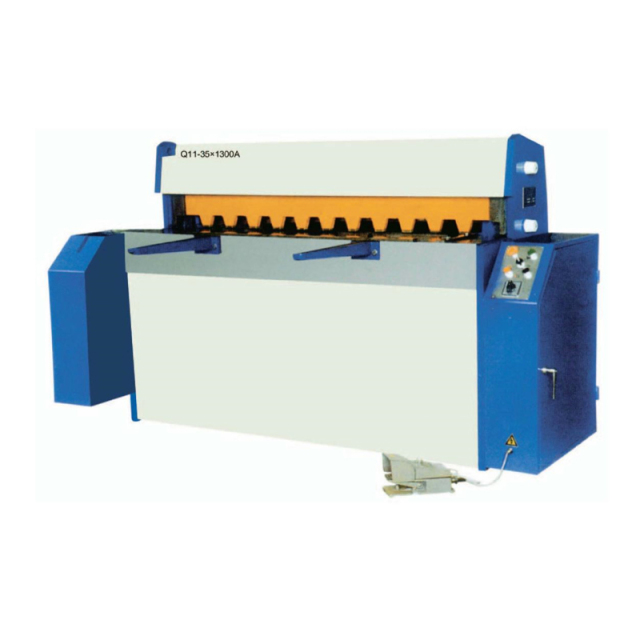

The machine adopts single open mechanical down driving system with compact construction, easily operation and nice appearance. With rotary key clutch, it can be sensitively operated with low noise, less trouble and long service life. Adopts small angle and inner slanting construction to prevent body deformation. Wish disc spring to avoid displacement and ensure the cutting precision. And there is gear back gauge with scale, easy for operation and batch jobs.
|
Model |
Shear Thickness |
Shear Width |
Shear Angle |
Stroke Number |
Back Gauge |
Table Height |
Motor power |
Net Weight |
Dimensions |
|
Q11-3.5X1200A |
3.5mm |
1200mm |
2°25' |
56time/min |
0-350mm |
840mm |
3kW |
1420kg |
2080x1520x1280mm |
|
Q11-3.5X1300A |
3.5mm |
1300mm |
2°25' |
56time/min |
0-350mm |
840mm |
3kW |
1500kg |
2180x1520x1280mm |
|
Q11-3.5X1500A |
3mm |
1500mm |
2°25' |
56time/min |
0-350mm |
840mm |
3kW |
2200kg |
2380x1520x1280mm |
