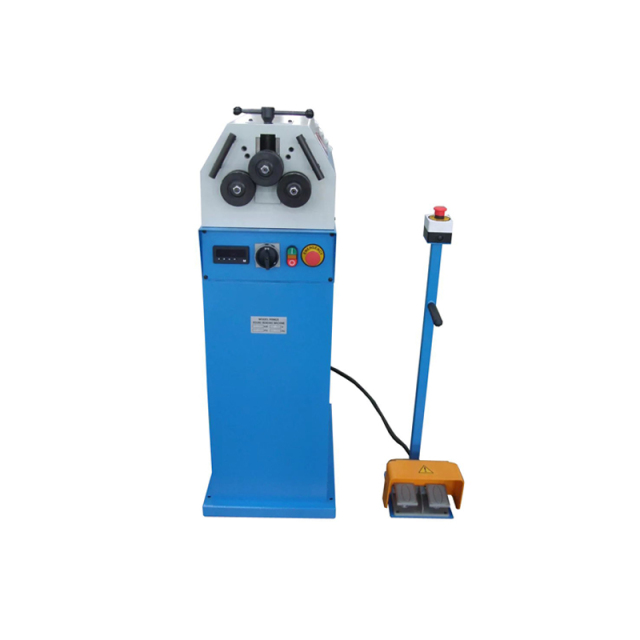

Heavy duty steel frame.
Ground and heat treated shafts.
Foot pedal operation.
Digital display for top roll.
Gear driven.
1 phase or 3 phase available.
Stand included.
|
Specifications |
RBM20 |
|
|
Shaft diameter |
20mm |
|
|
Driven rolls |
2 |
|
|
Dia. of roller |
88mm |
|
|
Spindle speed |
14.5rpm |
|
|
Repeat control |
Led readout |
|
|
Power |
0.75kW 1Ph / 0.55kW 3Ph |
|
|
N.W./G.W. |
120/156kg |
|
|
Packing size |
1050x600x600mm (body) |
|
|
Capacity |
Size |
Min dia. |
|
|
10x2mm |
80mm |
|
25x6mm |
200mm |
|
|
|
20x3mm |
90mm |
|
45x10mm |
300mm |
|
|
|
12x12mm |
110mm |
|
|
20x20x1.5mm |
250mm |
|
|
30x10x1.5mm |
300mm |
|
|
15x15x3mm |
100mm |
|
25x25x4mm |
200mm |
|
|
|
15x15x3mm |
100mm |
|
25x25x4mm |
200mm |
|
|
|
25x12x1.5mm |
140mm |
|
30x15x4mm |
250mm |
|
|
|
30x15x4mm |
250mm |
|
·All above processing capacities can be finished by one set of standard combination roller |
||
|
|
|
|
|
Special Roller |
|
|
|
Capacity |
Size (mm) |
Min dia. (mm) |
|
|
Φ12mm |
120mm |
|
|
Φ10x1.5mm 3/4 Gas |
400mm |
|
|
Φ30x1.5mm |
400mm |
|
|
20x20x4mm |
150mm |
|
|
20x20x4mm |
200mm |
