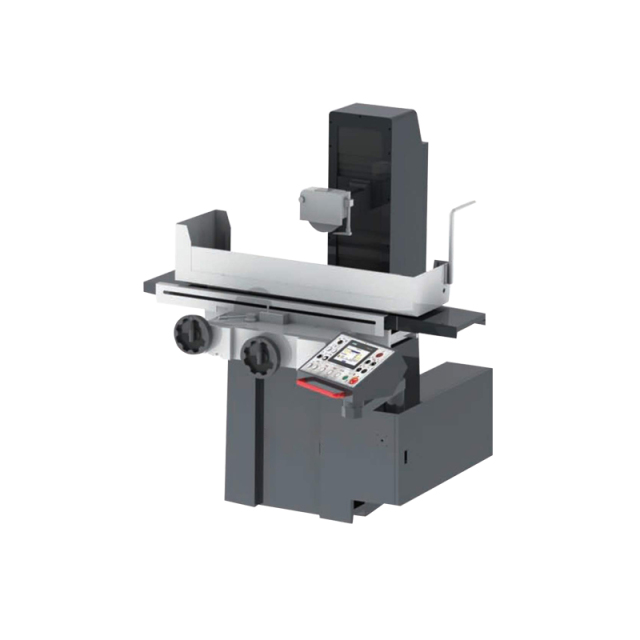

AH: Hydraulic longitudinal feed, Manual cross and vertical feed.AHR: Auto cross feed, Hydraulic longitudinal feed, Rapid vertical feed.AHD: Auto cross feed, Hydraulic longitudinal feed, Auto vertical feed.
Specifications
SG2050AH
SG2050AHR
SG2050AHD
Table size
200x508mm
Magnetic chuck size
200x460mm
Max. distance from spindle to table
450mm
Table cross travel
240mm
Table longitudinal travel
560mm
Max. load capacity of table(including chuck)
180kg
Speed of table longitudinal movement
5-25m/min
Cross motion
Intermittent feed rate
0.1-8mm/t
Rapid speed
990mm/min
Feed of handwheel
0.02mm/div
Vertical motion
Auto down feed rate
/
0.005-0.05mm/t
Rapid down speed
650
480
0.005mm/div
Spindle rotating speed
2850r/min (50Hz), 3450r/min (60Hz)
Grind wheel size
200x20x31.75mm
Spindle motor power
2.2kW
Floor space
2300x1600x1675mm
G.W.
1650kg
Packing size
200x210x215cm
Standard Accessories
Optional Accessories
Electrical magnetic chuck
Luxurious splashing board
Coolant tank
Parallel wheel dresser
Balancing arbor
Oil tank guard
Wheel flange and wheel
Digital readout for Y/Z axis
Wheel extractor
Balancing stand
Standard dressing stand (not include diamond pen)
Include diamond pen
Leveling wedge
Magnetic separator apparatus
Tools and tool box
Magnetic separator and paper filter coolant tank
Paper filter apparatus
Dust collector
